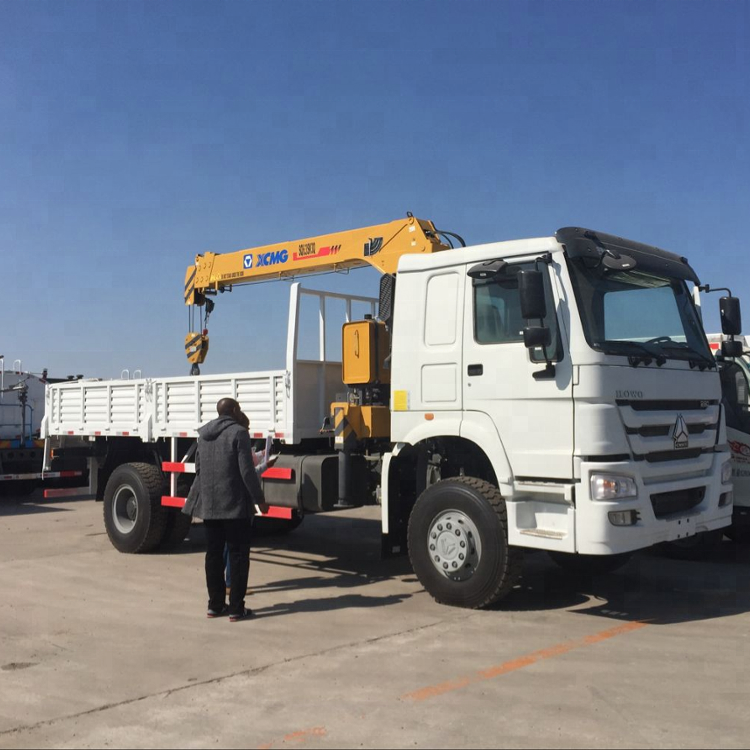

ZZ5167M5227A Sinotruk HOWO 4x4 290hp boom crane truck 6.3ton and 360° all rotation
Description:
Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.
Compact boom head
Extend the jib length, which can extend the working radius to the most.
Hydraulic pipeline
The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.
Operating cab
It has large space and wide views. The control levers and instrument buttons are at hand.
Torque limiter
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Advantages
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
4.Specialization ,standard and accurate meet your requirement.
5. The price is competitive.
6.Excellent and high-quality control
Specification
| Max Lifting Moment | 15.7TM |
| Crane Model | SQ6.3SK3Q |
| Max Lifting Capacity | 6.3T |
| Rotation Angle | (360°) all rotation |
| Crane Weight | 2230 kg |
| Flow of Hydraulic System | 40 L/min |
| Pressure of Hydraulic System | 20MPa |
| Oil Tank Capacity | 90L |
| Installation Space | 1050mm |
| Truck Model | ZZ5167M5227A (Left Hand Drive) |
| Truck Brand | SINOTRUK –HOWO |
| Type of vehicle | Off-road truck |
| Engine Power | 290HP |
| Traction 4x4 & 6x6 & 8x8 | 4x4 |
| Overall Dimension(Lx W xH) | 8968*2496*3370 |
| Approaching angle/Departure angle(°) | 32/36 |
| Overhang(front/rear) (mm) | 1500/2200 |
| Wheel base (mm) | 5200 |
| Max speed(km/h) | 75 |
| The total mass (kg) | 16 000 |
| Curb weight(kg) | 1010 |
| Caapacity of fuel tank (L) | 300 |
| Cargo body size (L*W*H, mm) | 5300x2300x600 bottom:3mm, side:1.5mm, |
| Engine Model | Model | WD615.87 |
| Horse Power | 290HP EURO II |
| Fuel | diesel |
| Transmission | HW15710C 10 forwards and 2 reverse |
| Clutch | Single-plate dry clutch Φ420mm |
| Steering system | 8118 |
| Front axle | STR |
| Rear axle | ST16 |
| Color | Optional |
| Tire | 12.00R20 Radial tire 6+1 spare tire |
| Cabin | HW76 single sleeper with air-conditioner |
Product Tags:
|
|

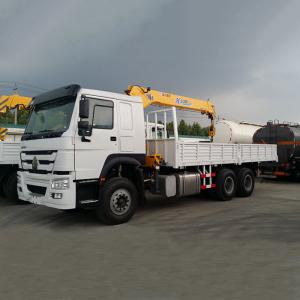

290hp Boom Truck Crane / 6.3 Ton Rear Mounted 4x4 Crane Truck 360° All Rotation Images
|
