Diesel Engine Heavy Duty Dump Truck Single Cabin 2 Seating Type ZZ3317N4267A

  • 1
  • 2
  • 3

Brand Name : HOWO

Model Number : ZZ3317N4267A

Certification : ISO/CCC

Place of Origin : JINAN CITY OF CHINA

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 units/month

Delivery Time : 30-45 work days

Packaging Details : Nude

Model : ZZ3317N4267A

Truck Brand : HOWO A7

Dimension : 9610×2496×3490mm

Driving Type : Left Hand Driving optional

Lifting Type : Under body Hydraulic Lifting

Thickness : bottom:8mm,side:6mm

Contact Now

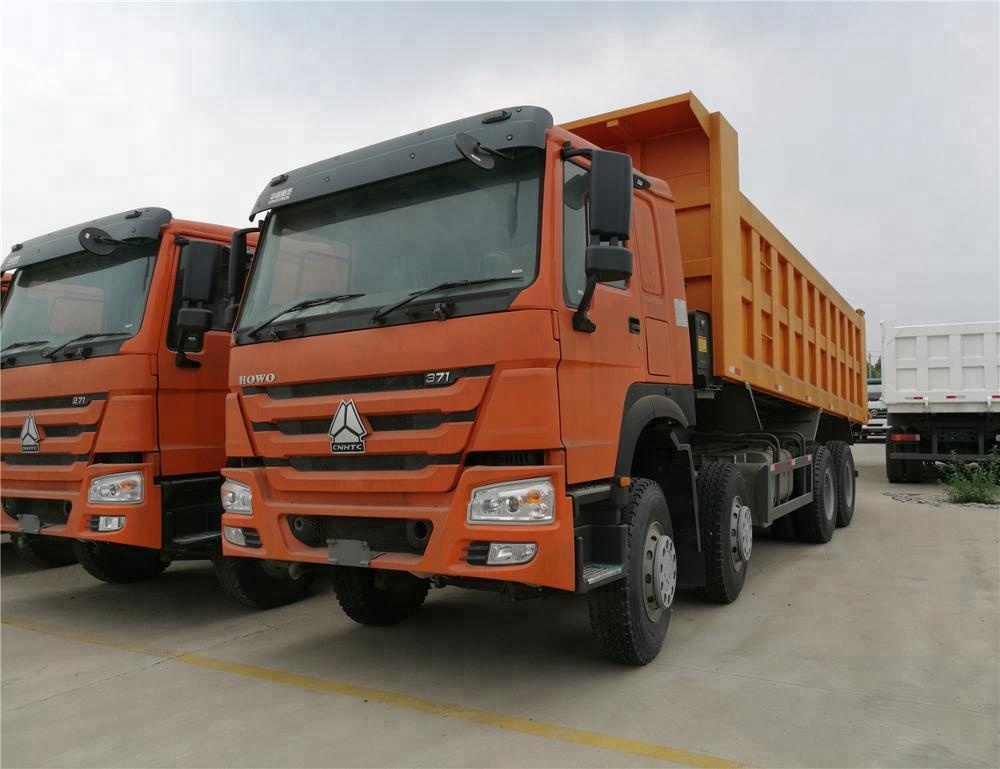

HOWO 8×4 371 HP Dump truck with German ZF8118 steering gear box and orange color

Description:

HOWO 8×4 371 HP Dump truck have good cost performance: Adopting full hydraulic transmission, it can bring the power of engine into full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenanceHigh productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.Good capability in climbing the slope: 4-wheel driven, strong driving power.Operation flexible: Center-point frame articulated and small turning radius makes it convenient to
work in confined places.

Packing:

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.
We have professional forwarding partners.

Competitive Advantage:

1. Operation flexible: Center-point frame articulated and small turning radius makes it convenient to
work in confined places.
2. Safe and reliable: Single-line air-assisted brake system.
3. Going-through capability: The rear axle can swing around the center hanger frame, improved the going-through capability of the whole machine.
4. Operation comfort: Continuously variable transmission, full hydraulic steering system steady and reliable

5.Long lasting working life time.
6.Sufficient storage.

MODEL HOWO ZZ3317N4267A
Load Parameters
G. V. W. (kg) 31000
Curb weight,(kg) 15450
Loading capacity (kg) 15420
Drive form 8X4
Max. speed KM/h 78KM/h
Front axle capacity(KG) 9000
Rear axle capacity (KG) 16000
Leaf spring 11/11/12
Appr/Dep(°) 19/22
Dimension Parameters
Dimension(mm) (LXWXH) 10825X2496X3450mm
Cargo box Dimension(LXWXH) 7800X2300X1000mm
Wheel base(mm) 1800+4200+1350
Wheel trace(mm) 2022/2022, 1830/1830
Configuration Parameters
Cabin Cabin type Single
Seating capacity 2
Engine Brand&Model WD615.47
Max. horsepower 371hp
Max. power 279KW
Max.output torque 1560N·m
Displacment(ml) 9726
Combustion types Diesel
Gearbox Brand&Model HW19710
Fuel tank capacity 400L
Emission standard EURO 2
