Large 6×4 Heavy Duty Dump Truck With 400L Fuel Tanker 24V Electric System

Name: Large 64 Heavy Duty Dump Truck With 400L Fuel Tanker 24V Electric System
Brand: HOWO A7
Price: 1 USD

Quality Large 6×4 Heavy Duty Dump Truck With 400L Fuel Tanker 24V Electric System wholesale

Brand Name : HOWO A7

Model Number : ZZ3257N3847N

Certification : ISO/CCC

Place of Origin : JINAN SHANDONG

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 units/month

Delivery Time : 30-45 work days

Packaging Details : Nude

Model : ZZ3257N3847N

Cab : HOWO A7 Lengthen cab

Wheelbase : 3815+1350mm

Color and LOGO : Optional

Cubage : 18/20m3

Displacement : 9.726L

Contact Now

HOWO A7 336 HP 6×4 Dump Truck with 400L Fuel tanker and HW19710 transmission

Description:

HOWO A7 Dump truck adopt 336 HP WD615 series of 6-cylinder in line, 4-stroke, water cooled, turbo-charged inter-cooled,direct injection engine.Have good power economy.
And the brake system have huge advantages.The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 6mm, bottom 8mm.

Packing:

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.
We have professional forwarding partners.

Competitive Advantage:

1. Good cost performance: Adopting full hydraulic transmission, it can bring the power of engine into
full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenance
2. High productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.
3. The best quality standard guaranteed
4. Product upgrading and expansion of species
5. Good quality with competitive prices.
6. Flexible and convenient logistic service.
7. Excellent and high-quality control
8. Long lasting working life time.
9. Sufficient storage.

Description:

Model		ZZ3257N3847N
Cab		HOWO A7 Lengthen cab, single bunk, new type seat, adjustable steering wheel ,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, air conditioner
Engine(Hp)		336
Power(Kw)		247
Wheelbase		3815+1350mm
Front/Rear Suspension		1500/1870
Steering		ZF8118 steering
Approach/departure angle		20/28
Wheels & tire		12.00R20
Tire number		10+1
Cargo Dimensions(mm)		5600×2300×1500
Cubage (m3)		18/20
Steel thickness		Side 6 ,Bottom 8
RHD or LHD		optional
Overall Dimensions(mm)		8400×2500×3450
Curb weight (Kg)		9800
Engine	Model	WD615.69
	Horsepower	336
	Maximum output Kw	247
	Maximum torque N.m	1350
	Type	6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
	Displacement	9.726L
	Sinotruk brand, Euro 2
Driving passenger	2,3
Transmission	HW19710,10 forwards,2 reverse
Front Axle	HF 9
Rear Axle	HC 16
Brake System	air brake exhaust brake
Color and LOGO	customized
Electric system	24V

Large 6×4 Heavy Duty Dump Truck With 400L Fuel Tanker 24V Electric System

Product Tags:

sand dump truck

construction dump truck

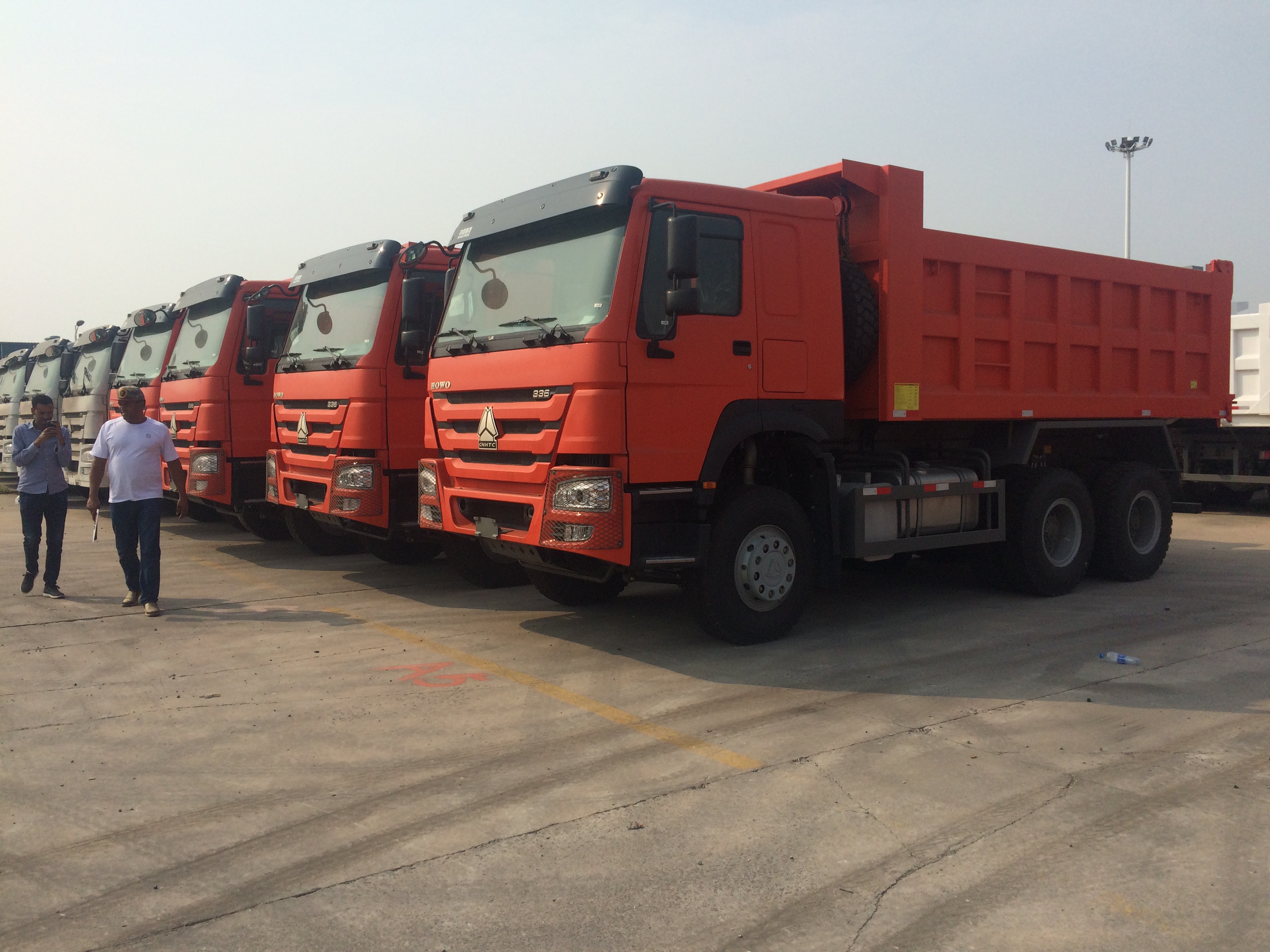

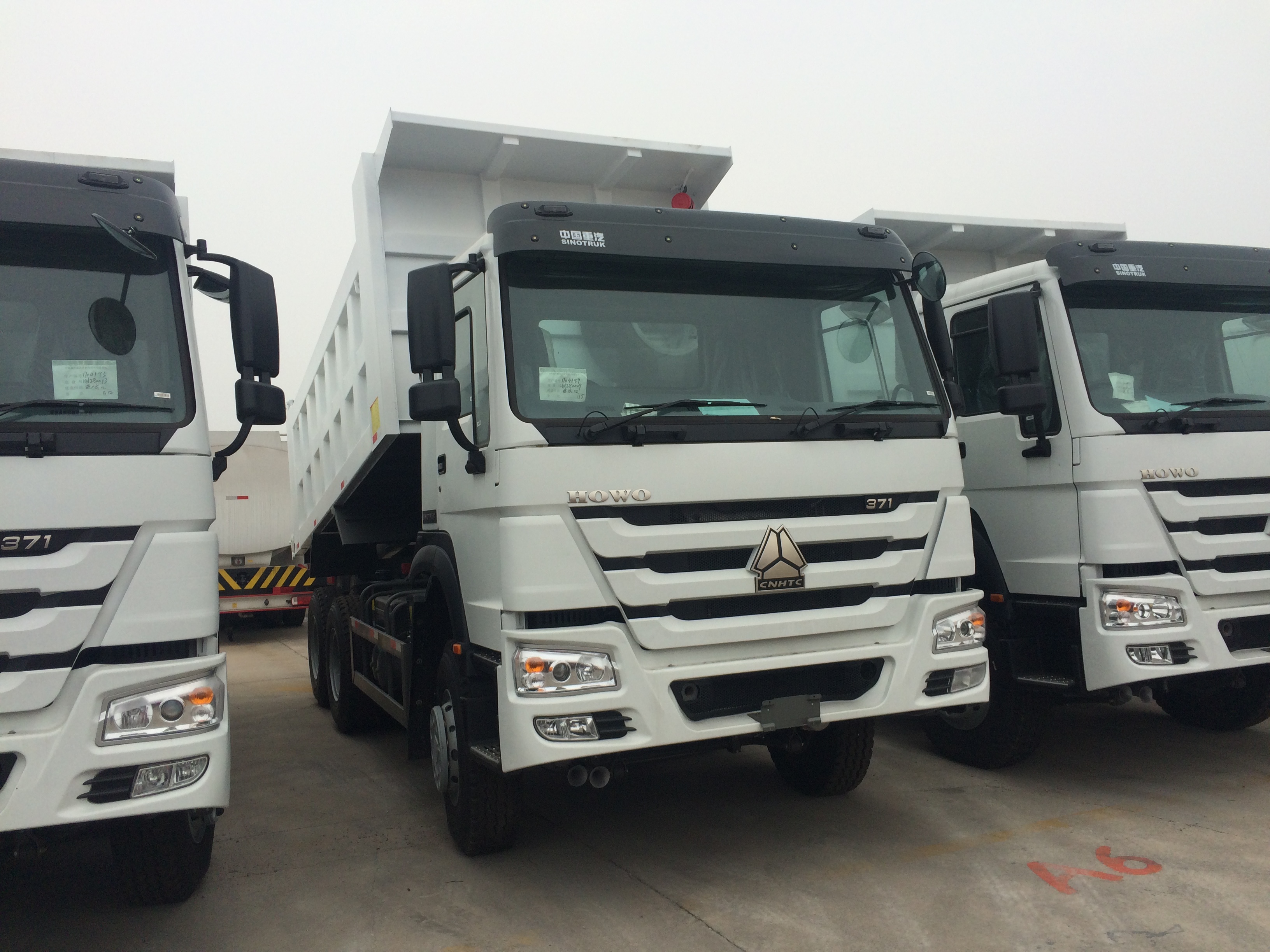

Large 6×4 Heavy Duty Dump Truck With 400L Fuel Tanker 24V Electric System Images
