SEM518 Single Drum road roller Construction Machinery 2130mm Compaction width
Description:
Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
Packing:
The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.And we have rich packing experience and well service.
Competitive Advantage:

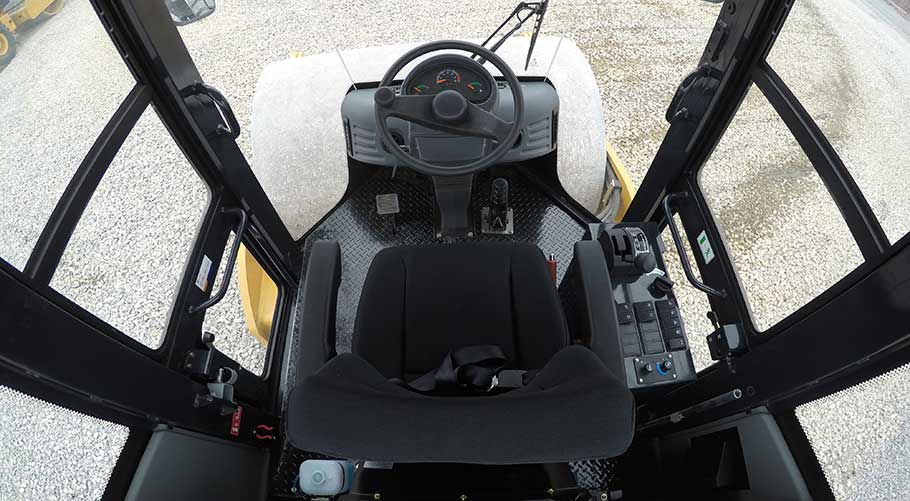

1. Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel
2. EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
3. Adopting full hydraulic transmission, it can bring the power of engine into full play amply.
4. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.
5. Rich experience and well after-sale service.
Specifications:
| Standard rated power-gross(kW) | 97.5 |
| Rated speed (r/min) | 2200 |
| Peak torque/speed-gross(N.m/rmp) | 560/1400-1600 |
| Sound level-spectator (dB(A)) | 112 |
| Sound level-operator position with cab (dB(A)) | 86 |
| Compaction (% of XS122) | 100 |
| Composite work cycle fuel consumption (1/hr)(% of XS122) | 100 |
| Ambient capability-HA sea level (Deg C) | 49 |
| Ambient capability-Cold weather (Deg C) | -10 |
| Operating Specifications |
| Machine mass w/std config (kg) | 12000±3% |
| Weight at drum w/std config (kg) | 6900±3% |
| Weight on rear axle (kg) | 5100 |
| Static linear load (N/cm) | 310 |
| Max.grade ability w/o vibbration ((%) | 45 |
| Articulated angle (°) | 33±1 |
| Turning radius inside drum edge (mm) | 5990 |
| Compaction width (mm) | 2130 |
| Ground clearance (mm) | 442 |
| Travel speed |
| Lo range (km/h) | 0 to 5.5 |
| Hi range (km/h) | 0 to 12 |
| Hydraulic cycle time |
| Full turn time (s) | 6±0.5 |
| Vibratory system |
| Freqency-hi (HZ) | 33 |
| Freqency-lo (HZ) | 30 |
| Amplitude-hi (mm) | 1.80 |
| Amplitude-lo (mm) | 0.90 |
| Centrifugal force-hi (kN) | 245 |
| Centrifugal force-lo (kN) | 150 |
| Dimensions |
| Machine dimensions (mm) | 5815*2290*3130 |
| Oscillation angle (°) | 10±1 |
| Wheelbase (mm) | 2900 |
| Tread width (mm) | 1600 |
| Drum width (mm) | 2130 |
| Drum diameter (mm) | 1600 |
| Tire specs | 23.1-26 12PR12 |
| Tire pressure setting (Mpa) | 0.35 |
