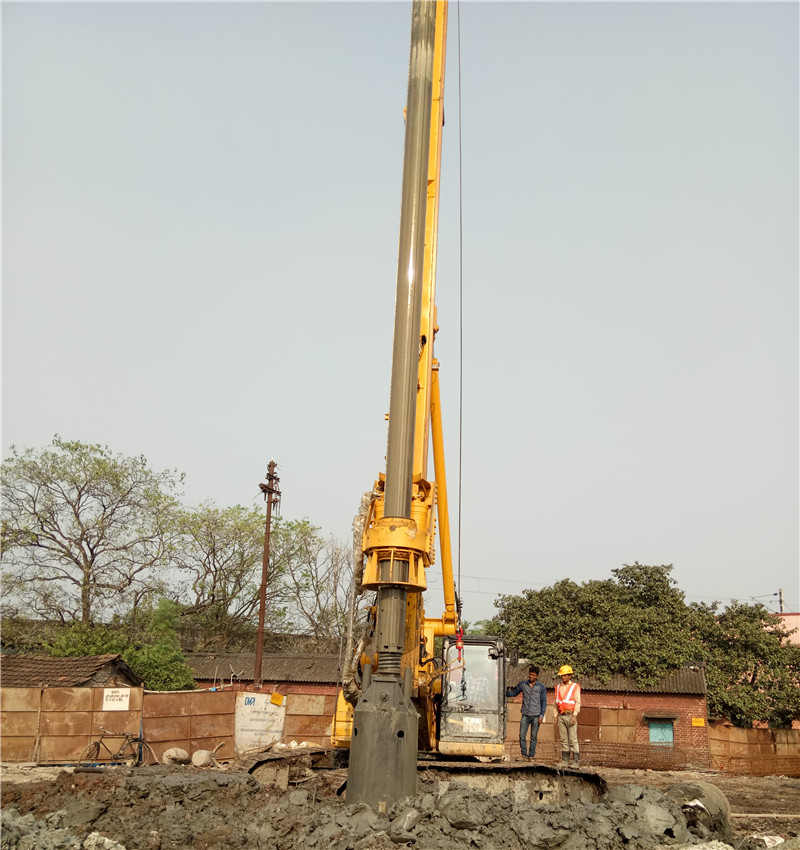

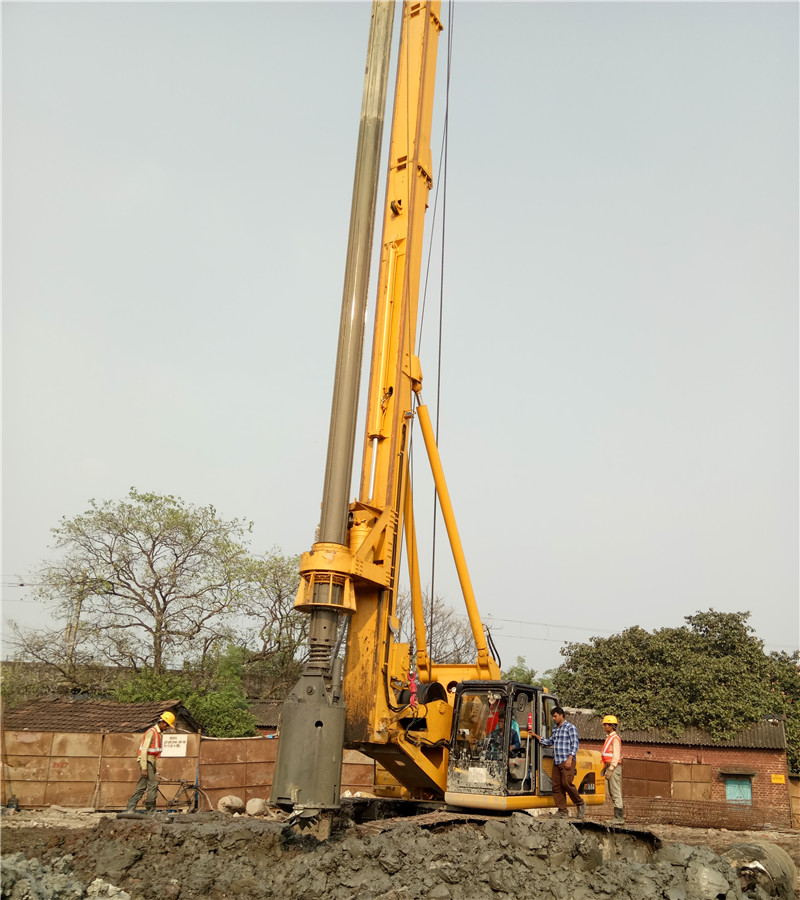

FD168A 18mm Rope Diameter China Rotary Drilling Rig Concrete Pile Machine
Description:
The cab layout is compact and reasonable.all kinds of switch,handles,monitoring instruments and other focus on around of the seat. So the operation is easy,relaxing and reduces the labor intensity,air-conditioning and heating and stereo provides a comfortable operating environment.
Adopting original imported hydraulic pressure motor of Italy and has strong power.Using the low position-oriented structure for the frame. this guarantees the verticality of Kelly bar in the drilling process and avoids the trouble of diassembly in the transportation.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. Adopting telescopic mast structrre which owns simple structure.
2. The shape axle bed structure is used to fax boom and link arm(+-shape).
3. Triangular structure between link arm and amplitude cylinder increases the machine stability.
4. The price is competitive.
5. All colors are available according to your choice.
6. 30-45 work days production period.
. Professional team for customs services.
| Max. drilling diameter | 600-1800mm |
| Max. drilling depth | 44/56m |
| | Rated Power | 133KW |
| Type | Turbocharged direct-injection |
| Model | B5.9-C Cummins(USA) |
| | Max. Torque | 80 /156 KNM |
| Roated Speed | 20/10 rpm |
| Motor | Italy Sai |
| | Max. Push | 150KN |
| Max. Pull | 100KN |
| Max. Stroke | 3000mm |
| | Max.line pull | 120KN |
| Max.line speed | 70m/min |
| Rope Diameter | 24mm |
| | Max.line pull | 60KN |
| Max.line speed | 50 m/min |
| Rope Diameter | 18mm |
| | Free adjustment farwards/back wards | 0-93° |
| Free adjustment left/right | +- 3° |
| | Working dimensions | 7630mm×4200mm×18587mm |
| Transport dimensions | 15370mm×3200mm×3375mm |
Electronic Management System | Long distance monitor system | Available |
| Drilling record system | Available |
| On car printer | Availbel |
| Machine weight | 43500 KGS |
| | Chassis modality | Customizable |
| Max travel speed | 2.0km/h |
| Min ground clearance | 500mm |
| Track width | 800mm |
| Hydraulic system pressure | 300bar |
