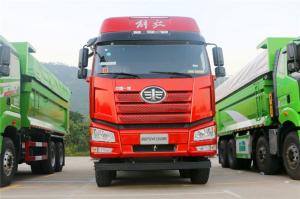

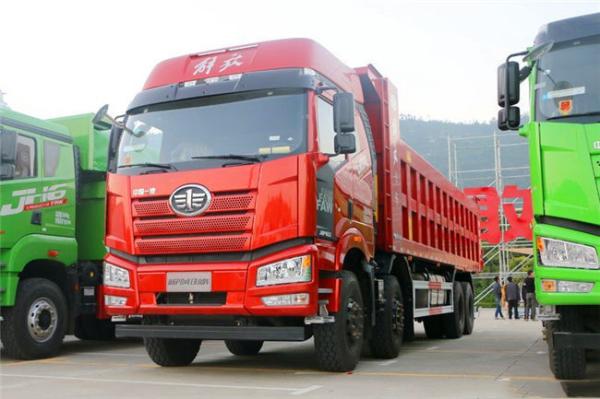

FAW J6P Lhd Heavy Duty Dump Truck 8*4 Low Tipper Rigid Capacity / 40 Ton Dumper

Shandong Global Heavy Truck Import&Export Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

FAW J6P Lhd Heavy Duty Dump Truck 8*4 Low Tipper Rigid Capacity / 40 Ton Dumper

  • 1
  • 2
  • 3

Brand Name : FAW

Model Number : CA3310P66K24L5BT4

Certification : ECE,CCC

Place of Origin : CHINA

MOQ : 1 UNIT

Price : NEGOTIABLE

Payment Terms : L/C, T/T

Supply Ability : 5000UNITS/MONTH

Delivery Time : 25-45DAYS

Packaging Details : NUDE

Drive Wheel : 8*4

Horsepower : 351 - 450hp

Transmission Type : Manual

Fuel Type : Diesel

Dump Truck Maximum Speed : 73/71/83 km/h

Capacity (Load) : 31 - 40t

Emission Standard : Euro 3

Engine Capacity : > 8L

Contact Now

China FAW J6P truck 40ton dumper lhd heavy duty dump truck 8*4 low tipper rigid capacity

Product Advantages:

  • Faw dump truck 8*4 are participants in all the coloscal construction projects;
  • Carrying ore,coal,asphalt,sand and varoius building machinery;
  • Work at any temperature without engine shutdown;
  • Harsh terrains,lack of repai shops,poor quality,fuel,extra weight of 3~5ton did not hinder Faw dump trucks to tackle their job;
  • High reliability,off-road capability,simple maintenance and repair;
  • Availabilityof spare parts at dealer's and company's.
Why Choose Faw dump truck 8*4 ?

1. Oil Saving--

two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve Improvement, entire car optimizing assembly, empty / full load switch, the latest streamline driving cab reducing wind resistance effectively, reducing self weight by 200--500kg, and etc.


2. Safety--

drum brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.

3. Driving comfort--

New style air bag seat, four point floating suspension with anti-roll bar, damping device for the cab, double locking seat belt, outside sun shade, drum brake solving brake sway in case of over load, and etc

4. Reliability--

all the assembly has passed extremely harsh condition experiments and the verification of over 2 years in bad use condition.

5. Low application cost--

large use quantity, complete service and accessory networks and low price.

Customer Service:

1: Quality

1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.

1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.

2: Packing & Transportation

2.1- Packing: Nude Cargo

2.2-Shipping marks: none

2.3- Transportation:RORO vessel or container

3 Delivery

We could deliver the Goods to any port in China as required within 150 calendar days from the date of receiving the down payment.

4 Quality/Specifications/Quantity discrepancy

If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.

5 Warranty and After-sales service

We and all of our distributors have enough ability to provide carefulness and consideration Warranty and After-sales service.

Technological Parameters:

GVW (kg) 31000 Mass in working order (kg) 15300
Loading capacity (kg) 15505,15570 Max speed (Km/h) 85
Overall dimensions(mm) 11340*2500*3600
Chassis Description
Chassis Model CA3310P66
Allowable Passengers In Cab 3 Air conditioner Equipped
Wheel base(mm) 2100+4300+1350 Number of axles 4
F/R track base(mm) 2050/2050; 1830/1830 F/R overhang(mm) 1470/2120
Approach/Departure angle(°) 24/16 Spring plate 10/10/12
F/R axle-load(kg) 6500/6500/18000 (double-axle) Type of fuel Diesel
Tire specification

11.00R20,12.00R20,

11.00-20,12.00-20

Tire quantity 12
Traction system 8*4 Operation control system Steering Wheel
Braking system Air braking Electric system 24V
Up-parts Description

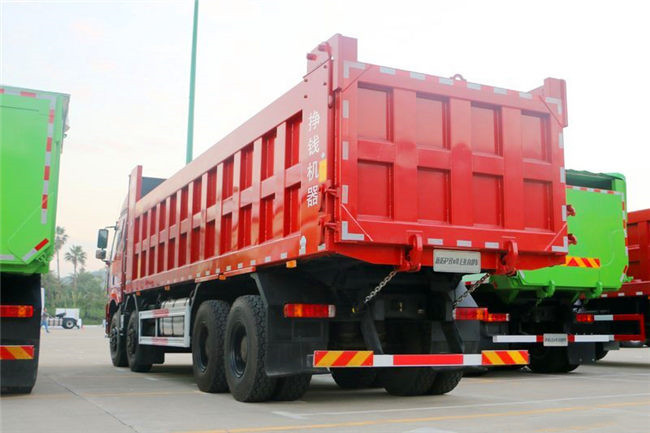

Van dimensions(mm) 8200*2300*1000
Van description

1.Material ;steel

2.Cargo bin thickness: side 6mm Bottom 8mm

3.Central hydraulic cylinder

Standard Equipment

1.One backdoor

2.180 front lift made in china

Optional Equipment

1.Side doors

2.Yangzhou Haiwo lifter

Engine Description
Engine model CA6DL2-35E3 Emission standard Europe 3
Exhaust/output 8600/270 Horse power 375
