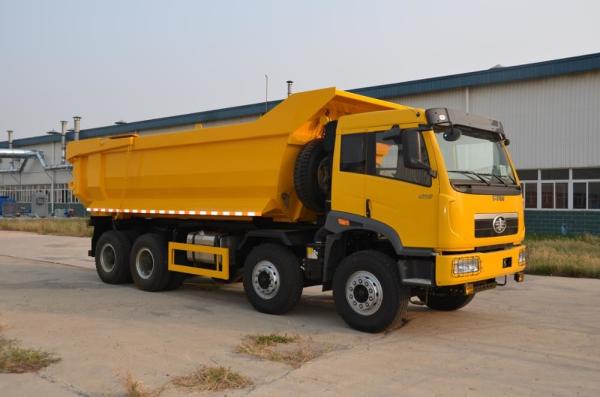

Brand FAW NEW J5P 6*4/8*4 20t 371HP Euro 2 Dump Truck CA3256P2K2T1EA81
Product Introduction:
1. Full-float New J5P cabin (high roof/flat roof), comfortable and control smoothly;
2. High safety ,high reliability , high comfort ,low weight ,low fuel consumption ,low maintenance cost;
3. FAWDE/WEICHAI engine ,FAW/FAST/EATON/ZF gearbox ,FAW/PX axle, high reliability;
Apply to long distance high efficiency transportation.
NEW J5P adopts the mature assembly parts in China. The car looks beautiful and generous, stable and rough, and its structure is harmonious. In addition, it is equipped with full floating suspension, which makes it comfortable and stable.
Product Specifications:
| | | NEW J5P Dump truck 6*4 | NEW J5P Dump truck 6*4 | NEW J5P Dump truck 8*4 |
| | | 4 | 5 | 6 |
| Recommended Vehicle Model | CA3256P2K2T1EA81 | CA3256P2K2T1EA81 | CA3312P2K2L4T4EA80 |
| Mass Parameter(kg) | Curb Weight | 9350 | 9400 | 10350 |
| Max. GVW | 25000 | 25000 | 31000 |
| Dimension Parameter(mm) | Overall Dimension | 7518*2500*3075 | 7518*2500*3075 | 9713*2500*3075 |
| Wheelbase | 3700+1350 | 3700+1350 | 1860+3960+1350 |
| Performance Parameter | Max. Speed(km/h) | 78 | 78 | 78 |
| Economic Speed(km/h) | 50-60 | 50-60 | 50-60 |
| Max. Gradeability(%) | 52 | 72 | 54 |
| Cabin | NEW J5P 15 models
Full floating flat top single lying | NEW J5P 15 models
Full floating flat top single lying | NEW J5P 15 models
Full floating flat top single lying |
| Engine | Model | WP10.340E32 | WP10.380E32 | WP10.380E32 |
| Rated Power(kw/rpm) | 250/2200 | 280/2200 | 280/2200 |
| Max. Torque(Nm/rpm) | 1350/1200-1600 | 1460/1200-1600 | 1460/1200-1600 |
| Transmission | Model | 9JSD135T | 12JSD160T | 12JSD160T |
| Gears | Manual Transmission, 9 forward gears, 1 reverse gears | Manual Transmission, 12 forward gears, 2 reverse gears | Manual Transmission, 12forward gears, 2 reverse gears , |
| Axles | Steering Axle | maximum load 9000kg | maximum load 9000kg | maximum load 6500kg *2 |
| Drive Axle | 300 hub reduction, reduction ratio 5.921, maximum load16000kg*2 | 300 hub reduction, reduction ratio 5.921, maximum load16000kg*2 | 300 hub reduction, reduction ratio 5.921, maximum load16000kg*2 |
| Body | Suitable for 5600 mm compartments | Suitable for 5600 mm compartments | Suitable for 7600 mm compartments |
| self-discharging body | self-discharging body | self-discharging body |
| tyres | 12.00R20 18PR | 12.00R20 18PR | 12.00R20 18PR |
| Emission Level | E2 | E2 | E2 |
| Certifications | | | |
| Remarks | | | |
| Exported countries | the Philippines | Mali | the Philippines |
| | | | | |
| Recommend Market Type | Cargo Type | sand, stone and soil | sand, stone and soil | sand, stone and soil |
| Main Working Condition | Round trip full load | Round trip full load | Round trip full load |
| Operating Condition | short distance | short distance | short distance |
| Driver Position | left | left | left |
| Customer Type | Middle end, prefer quality and price | Middle end, prefer quality and price | Middle end, prefer quality and price |
Company Advantage:
1. Pressing
(1) Hot rolled pickling free (EPS) Truck beam plate, the only in China
(2) 2000hrs salt-fog resistance , much higher than the 504hrs of industry standard
(3) STAM roll forming machine ,CNC punching machine (0.3mm)
(4) 2400t single point pressing machine with robot
(5) Frame beam and connecting plate treated by leading shot blasting technology
(6) Chassis frame accurately on-line measured by leading light-pen measurer
2. Welding
(1) BAO-Steel, top quality in China
(2) 133 welding robots
(3) 1300 checking points for BIW ,key size 100% qualified
(4) BIW 100% robot detection
3. Painting
(1) 8th ED paint ,passenger car level
(2) Wall mounting spraying robot
(3) Primer & top paint
(4) Chassis integral paint , the only in China
4. Assembling
(1) 2 chassis assembly line, 1 interior trim line, flexible production capacity of multiple products: including light-duty truck ,medium-duty truck and heavy-duty truck
(2) Intelligent information link
(3) Interior trim line , same as passenger car
(4) Intelligent networking equipment is used in the key process of electric tightening
(5) Vehicle on-line adjustment and detection process
