JIEFANG FAW J5M Heavy Duty Mining Tipper Truck 11 - 20 Ton 350hp Euro 2

Shandong Global Heavy Truck Import&Export Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

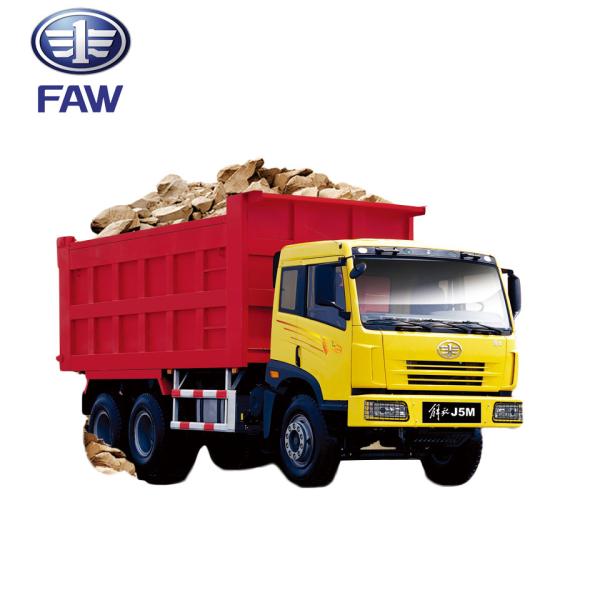

JIEFANG FAW J5M Heavy Duty Mining Tipper Truck 11 - 20 Ton 350hp Euro 2

Brand Name : FAW

Model Number : CA3223P1K2T1YA80/ CA3253P7K2T1YA80

Certification : CCC/CE/ISO

Place of Origin : CHINA

MOQ : 1piece

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 1000+pieces+month

Delivery Time : 20-25 work days after deposit

Packaging Details : Package in Nude

Drive Wheel : 6x4

Capacity (Load) : 11 - 20t

Horsepower : 251 - 350hp

Transmission Type : Manual

Fuel Type : Diesel

Color : Optional

Emission Standard : Euro 2

Gross Vehicle Weight : 28000

Contact Now

JIEFANG FAW J5M Heavy Duty 6 *4 11-20tons 350hp Euro2 Mining Tipper Truck

Product Specifications:

J5M Dump Truck 6*4 J5M Dump Truck 6*4
7 8
Recommended Vehicle Model CA3223P1K2T1YA80 CA3253P7K2T1YA80
Mass Parameter(kg) Chassis net weight kg 7780 7780
MAX gross kg 28000 31500
Dimension Parameter(mm) Overall Dimension 6775*2490*2760 7725*2490*2760
wheel base mm 3200+1350 4150+1350
Performance Parameter Max. Speed(km/h) 82 90
Economic Speed(km/h) 50-60 60-70
Max. Gradeability(%) 32 20
Cabin J5M flat top& semi-floating cabin& right J5M flat top& semi-floating cabin& right
Engine Model FAWDE CA6DF2D-23 FAWDE CA6DL1-28
Rated Power(kw/rpm) 180 /2300 209/2300
Max. Torque(Nm/rpm) 780/1400 1100/1300-1700
Transmission Model FAW CA7TB110M ET-16109A
Gears Manual Transmission, 7 forward gears, 1 reverse gears Manual Transmission, 9 forward gears, 1 reverse gears
Axles Steering Axle maximum load 5000kg maximum load 6500kg
Drive Axle
433 single reduction, reduction ratio 5.571, maximum load 11500 kg

457 single reduction, reduction ratio 4.111, maximum load13000kg
Body Suitable for 4800 mm compartments Suitable for 6200 mm compartments
self-discharging body self-discharging up load
tyre 11R22.5-16 295/80R22.5
Emission Level E2 E2
Exported countries Kenya Malaysia
Recommend Market Type Cargo Type sand, stone and soil sand, stone and soil
Main Working Condition Round trip full load Round trip full load
Operating Condition short distance short distance
Driver Position right right
Customer Type Middle end, prefer quality and price Middle end, prefer quality and price

Product Introduction:

1. J5M cabin: new designed interior ,manipulate easily and drive comfortably;

2. Reliable and powerful engine, gearbox and axle;

3. High strength frame , high payload capacity;

4. Apply to medium and long distance transportation.

Our Service:

1. Quality/Specifications/Quantity discrepancy

If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.

2. Warranty and After-sales service

We and all of our distributors have enough ability to provide carefulness and consideration Warranty and After-sales service.

Company Profile:

FAW JIEFANG Automobile Co., Ltd. is light, medium and heavy truck enterprises, headquartered in Changchun City, Jilin Province, and there are 22,000 employees. The annual production capacity is about 200,000 vehicles. There are 17 professional factories, branches, subsidiaries and 3 shareholding companies, located in Changchun, Dalian, Qingdao, Wuxi, Chengdu, Liuzhou six cities, formed Changchun, Qingdao, Chengdu, Liuzhou four vehicle bases and Wuxi , Dalian, Changchun engine, gearbox, axle three production bases.
