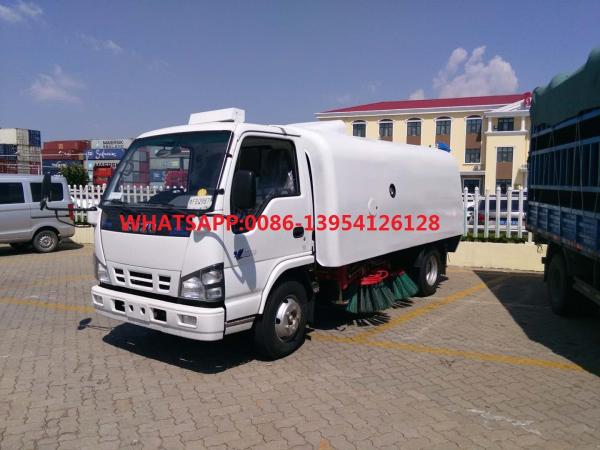

CHD5070TSLE4 Street Sweeper is new type sweep tool with ISUZU chassis according to the situation of our country. Generally approved, the four brush discs and the postpositive suction port are designed on this vehicle. All the brush discs can function automatically in preventing collision. The efficient aspiration system is also low-noised, and all the hydraulic pressed elements come from Europe and America. All these make the full vehicle perform more stable and more reliable
Features:
1. This thread cartridge valve is originally imported from America, which can realize the brusher’s stepless adjustment.
2. The manipulated control cabinet is designed by using single---chip processor. It’s characteristics are few switches, easy operating, etc
3. The water tank is placed on the bottom of the garbage. This will do much help to rave about all the garbage.
4. Auto centrifugal clutch is used to start the engine without load
5. The video monitor device can provide image surveillance for the driver to watch the quality and the status of the cleaning.
6. Manifold configuration and manifold choice for you to select one. The rolling brush can be chosen at will. The sewage circulation is increased. And snow plough is assembled as well.
Technical parameters:
| No | Item | Specifications |
| 1 | Chassis model | QL1070A1HAY |
| 2 | Dimension mm | 5650×2000×2430 |
| 3 | Front / back track mm | 1504/1425 |
| 4 | Wheel base mm | 3360 |
| 5 | Front / back suspension mm | 1015/1265 |
| 6 | Approach / departure angle ° | 24/23.5 |
| 8 | Max total mass kg | 7300 |
| 9 | Water container volume m3 | 1 |
| 10 | Garbage container volume m3 | 3 |
| 11 | Sweeping width m | 3 |
| 12 | Sweeping capacity m2/k | 60000 |
| 13 | Max speed km/h | 100 |
| 14 | Dump angle | 59 |
| 15 | Chassis engine model | 4KH1-TCG40 |
| 16 | Chassis engine rated power kw(r/min) | 96/3400 |
| 17 | Auxiliary engine model | 4JB1 |
| 28 | Auxiliary engine rated power kw(r/min) | 54/3600 |
Power transmission system

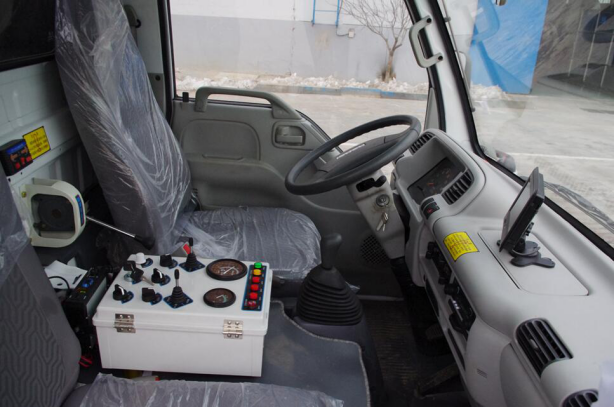

Monitor operating and control system in Cabin.
