ZZ3257N3847A 6x4 SINOTRUK Heavy Duty Dump Truck With 9 Tons Front Axle And ZF Steering
Description:
HOWO brand Dump Truck is produced by SINOTRUK.Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. Support service:response quickly in 12 hours and provide professional technical
2. Shipping:professional transport team,safety and quickly
3. The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.Warranty: one year
4. Production time: within 35 working days
5. Logistic team, can cargo your truck fast and safety.
| SINOTRUK HOWO 6x4 DUMP TRUCK SPECIFICATIONS |
| Body | Carriage Internal Dimensions(mm) | 5600x2300x1500 |
| Cubage (m3) | 19.32 |
| Steel thickness of Carriage(mm) | Floor:8mm/Side:6mm |
| Steel | Q235 |
| Hydraulic Lift of Carriage | Middle Lift |
| Weight in kg | Kerb weight (Kg) | 8765 |
| Gross vehicle weight (Kg) | 25000 |
| Dimension(mm) | Dimensions(mm) | Length(mm) | 7575 |
| Width(mm) | 2496 |
| Height(mm) | 3125 |
| Wheel base (mm) | 3800+1350 |
| Performance | Maximum driving speed (km/h) | 80 |
| Fuel consumption (1/100 km) | 40.3 |
| Cab | Model | SINOTRUK HW76 Lengthen cab |
| | HW76 cab, single sleeping, with air-condition), all-steel forward control, 70° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
| Engine | Model | WD615.47(Euro 2) |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Horsepower | 371 |
| Bore x Stroke | 126x130mm |
| Valve | 2 |
| Displacement | 9.726L |
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
| Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) |
| Front Axle | SINOTRUK HF9 Front Axle |
| Rear Axles | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. |
| Brake System | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
| Wheels & Tyres | Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. |
| Electrics | Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W 2x12V,165Ah.Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Oil Tank | Square type-400L Aluminum alloy fuel tank |
Product Tags:
|
|

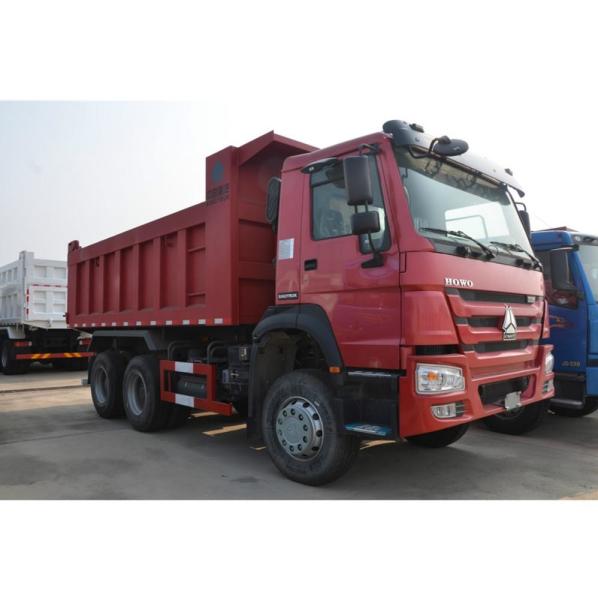

ZZ3257N3847A 6x4 Sinotruk Dump Truck With 9 Tons Front Axle Images
|
