ZZ3257N3647A SINOTRUK HOWO 10 Wheels Heavy Duty Dump Truck With HW19710 Transmission
Product Description
A dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as the dump truck. It consists of a car chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device.
Features :
1. Heavy duty truck chassis
2. Reinforced body structure with proven telescopic tipping gear
3. Combination of ride comfort and power
4. Key pressure point reinforced cargo body
5. Robust powertrain can help you tackle any challange at the construction site
6. Stable and reliable under-body tipping device ensures low-gravity hoisting
Advantages:
1. Oil Saving--two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve Improvement, entire car optimizing assembly, empty / full load switch, the latest streamline driving cab reducing wind resistance effectively, reducing self weight by 200--500kg, and etc.
2. Safety--drum brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.
3. Driving comfort-- New style air bag seat, four point floating suspension with anti-roll bar, damping device for the cab, double locking seat belt, outside sun shade, drum brake solving brake sway in case of over load, and etc
4. Reliability--all the assembly has passed extremely harsh condition experiments and the verification of over 2 years in bad use condition.
5. Low application cost--large use quantity, complete service and accessory networks and low price.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.
We have professional forwarding partners.
Product Parameter
| Truck Model | ZZ3257N3647A |
| Truck Brand | SINOTRUK –HOWO |
| Dimension(Lx W xH) | 8214x2496x3386 |
| Cargo body size (L*W*H, mm) | 5400x2300x1400 |
| Cargo body thickness(mm) | bottom:8mm, side:6mm, |
| Lift type of Carriage | Ventral lifting |
| Wheel base (mm) | 3625+1350 |
| Curb weight(kg) | 12290 |
| Loading Weight(kg) | 30000 |
| Fuel tanker capacity | 300L with locking fuel cap |
| Fuel consumption(L/100km) | 32 |
| Clutch | Single-plate dry clutch Φ420mm |
| Engine Model | Model | WD615.47, |
| Horse Power, max(kw/rpm) | 371HP,247/2200 |
| Emission Standard | EURO II |
| Transmission | Model | HW 19710,10 forwards and 2 reverse |
| Steering system | Model | ZF8118, |
| Front axle | HF9 , |
| Rear axle | HC16, |
| Tire | 12.00R20 11 pieces |
| Cab | HW76 cab, (one sleeper,with air-condition) |

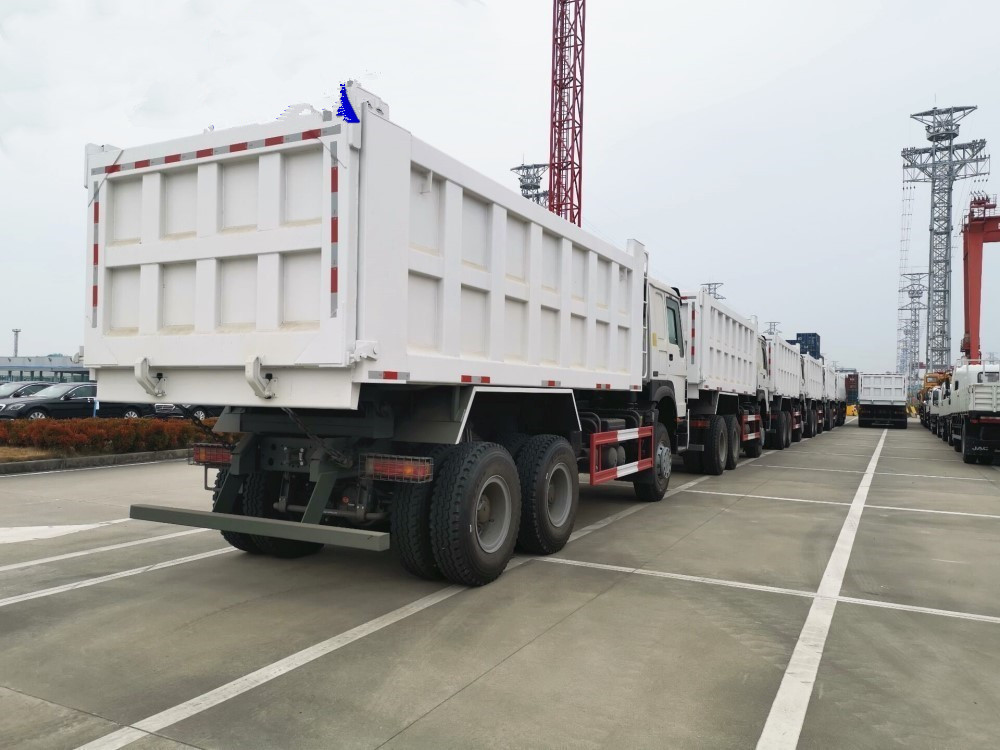

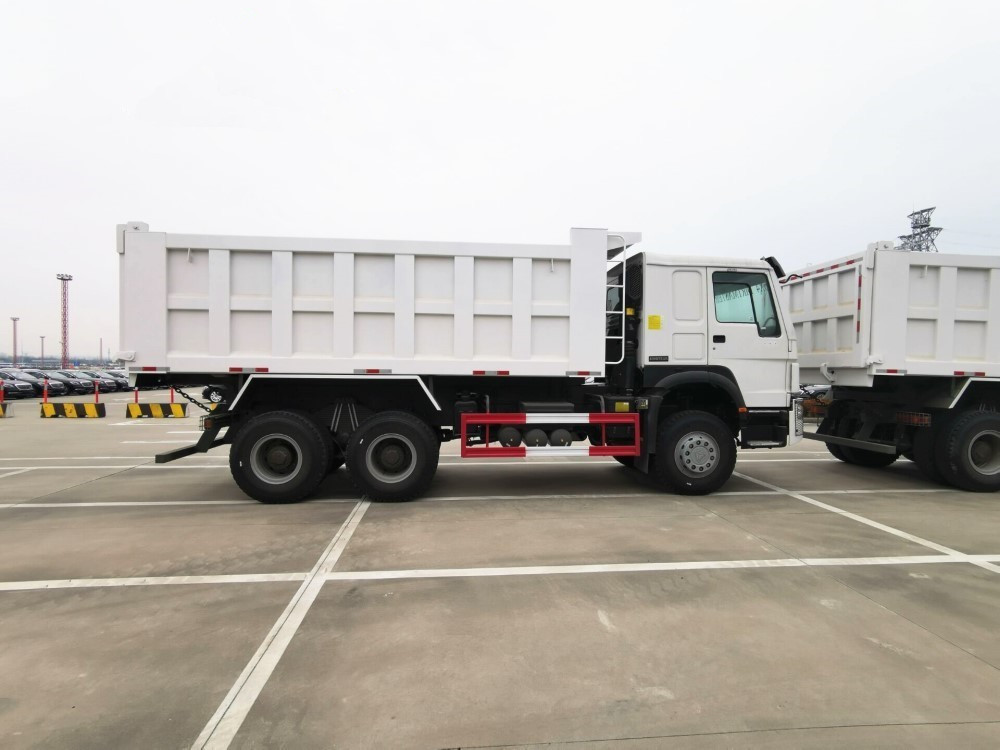

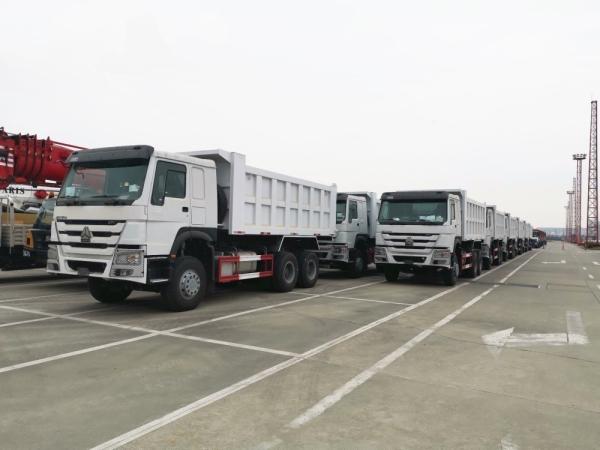

Product Picture
