Bucket type-HZZ5311JQJJF 18m Bridge Inspection Vehicle With FAW Chassis
Product specification :
| Type | Bucket type |
| Max. horizontal range | 18M |
| Max. lowering depth | 23M |
| Space required on bridge | 3500mm |
| Max. overbridging of sidewalk | 5200mm |
| Max. crossing of sound barrier | 4300mm |
| The first scope of rotation | 0-90° |
| The second scope of rotation | 0-180° |
| Max. working height | 15M |
| Max. load on platform | 250KG |
| G.V.W | 31000KG |
| Overall dimension | 12472(L)×2500(W)×4000(H)mm |
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Our advantages:
A quality control team with more than 20 years' experience has been set up in our company. All the members in this team have more than 20 years' experience in the quality control of special purpose vehicle. Each step in the manufacturing process has been strictly monitored to guarantee the products' high quality. No matter what are your interested items, they will be in the same outstanding quality.
FAQ:
18m Bridge Inspection Vehicle (Bucket type-HZZ5311JQJJF) is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed, in the meanwhile complete the work in the shortest time. It also meet the testing requirements for most different bridges.
Bucket type Bridge inspection vehicle used FAW chassis, drive mode is 8 × 4, the maximum driving speed is 90km / h, maximum working speed is 10m/min, parts of hydraulic components and control components imported. The dedicated device uses first scalable, second rotating , third luffing mechanism, forming a three-dimensional space, six degrees of freedom space motion system, can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed.
.
Company information:
Founded in 2001,Shandong Sanwei Trade Co.,Ltd is a group of companies and a large factory&exporter authorized by SINOTRUK,FAW, BEIBEN,XCMG. Registered capital: US$90,000,000.00 . Headquartered in Jinan city of CHINA, the company has environmental advantages.Its business scope include: international trade business, domestic sales, Binzhou sales.The company has a professional sales team of 100 people, of which 50 people are responsible for overseas markets. They are proficient in English, French, Arabic, Spanish, Portuguese and other language skills. There are 50 people in charge of the domestic market, 80% of whom have more than 5 years of experience in truck and construction

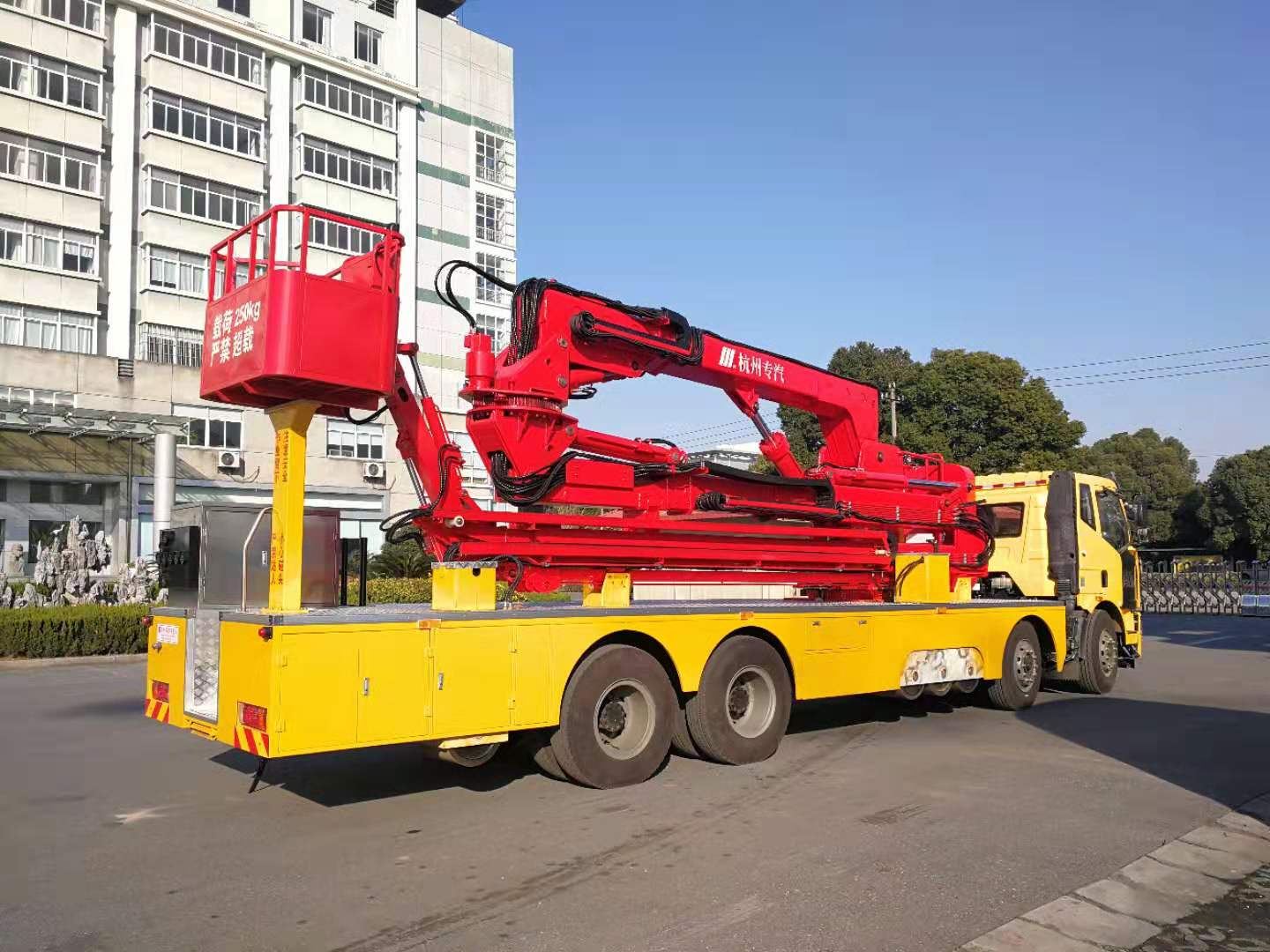

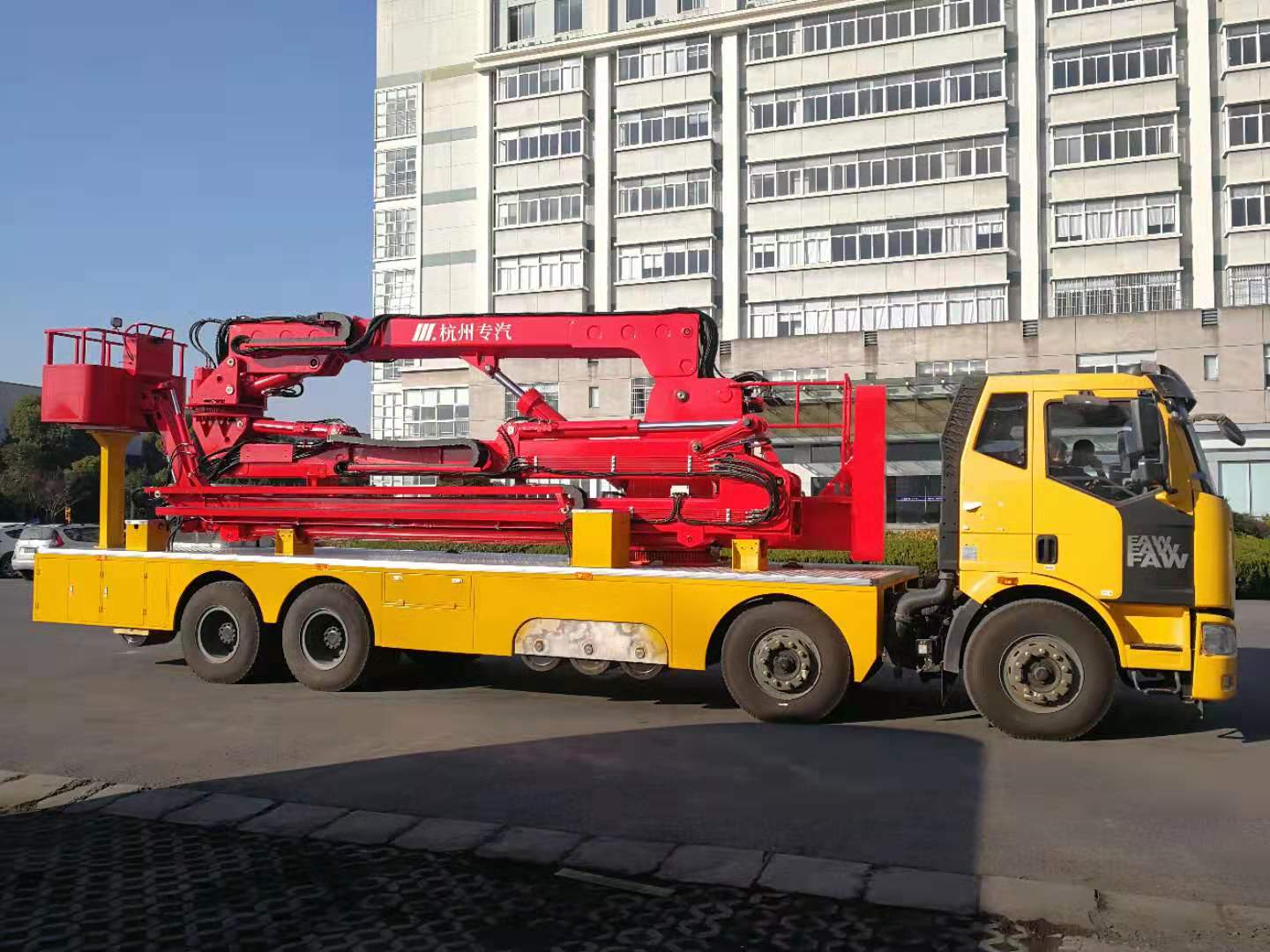

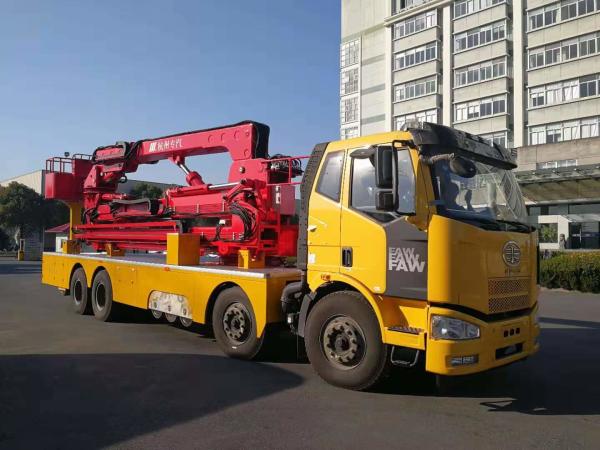

Reference pictures:
