4X2 Drive HOWO 336 horsepower heavy duty dump truck for sale
Main Discription:
| Truck Model | ZZ3167M3811 |
| Dimension | 7514x2496x3386mm |
| Cargo body size | 5400x2300x1400mm |
| Wheel base | 3800mm |
| Volume of cargo | 18.63m3 |
| Thickness | bottom:8mm, side:6mm |
| Gross of weight()kg | 16000 |
| Loading Weight(kg) | 25000 |
| Fuel tanker capacity | 400L with locking fuel cap |
| Displacement | 9.726L |
| Fuel consumption(L/100km) | 32 |
| Engine | 4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter cooling |
| Horsepower | 266HP |
| Model | WD615.62 |
| Emission standard | EURO II |
| Transmission | HW 15710,10 forwards and 2 reverse |
| Steering system | ZF8118 |
| Front axle | HF9 |
| Rear axle | HC16 |
| Tire | 12.00R20 7 pieces |
| Cab | HW76 cab,(single sleeping, with air-condition), all-steel forward control |
| Electrics | Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W 2x12V,165Ah.Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
| Brake system | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
Description:
HOWO 4x2 Dump Truck is produced by SINOTRUK.Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.
Our advantages:
1. Warranty: one year or 10000 km
2. Production time: within 35 working days
3. After-sale service team:highly trained with overseas working experience
4. Support service:response quickly in 12 hours and provide professional technical
5. Shipping:professional transport team,safety and quickly
6. The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Packing & Delivery:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.

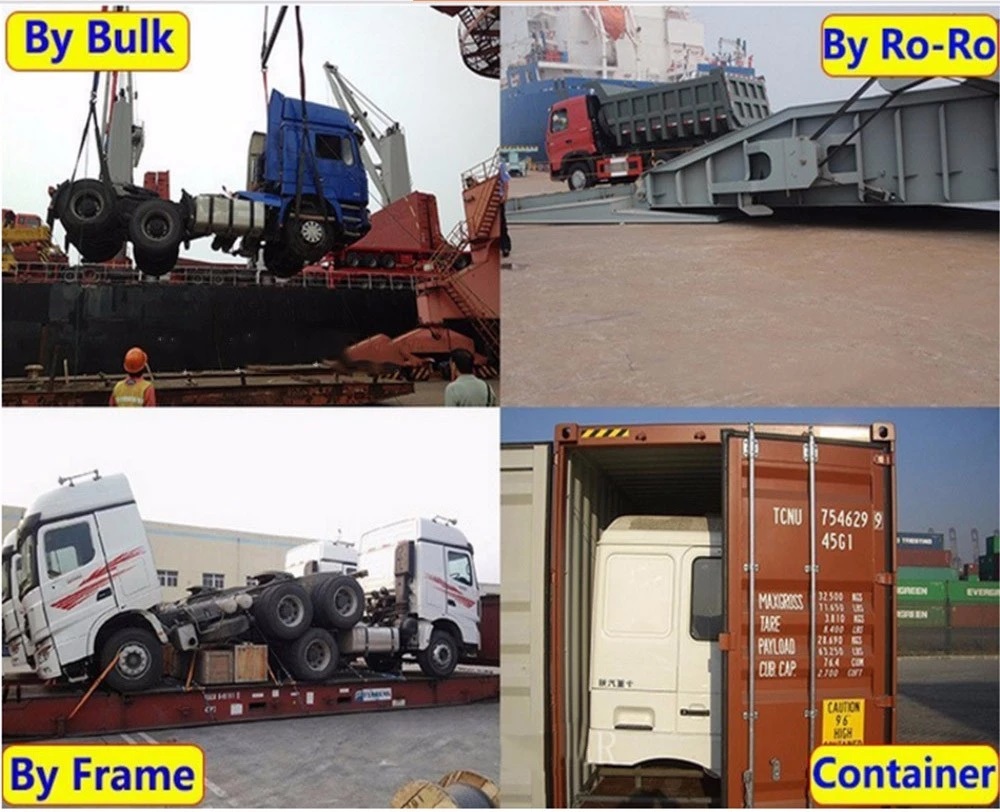

Shipment of Our Trucks

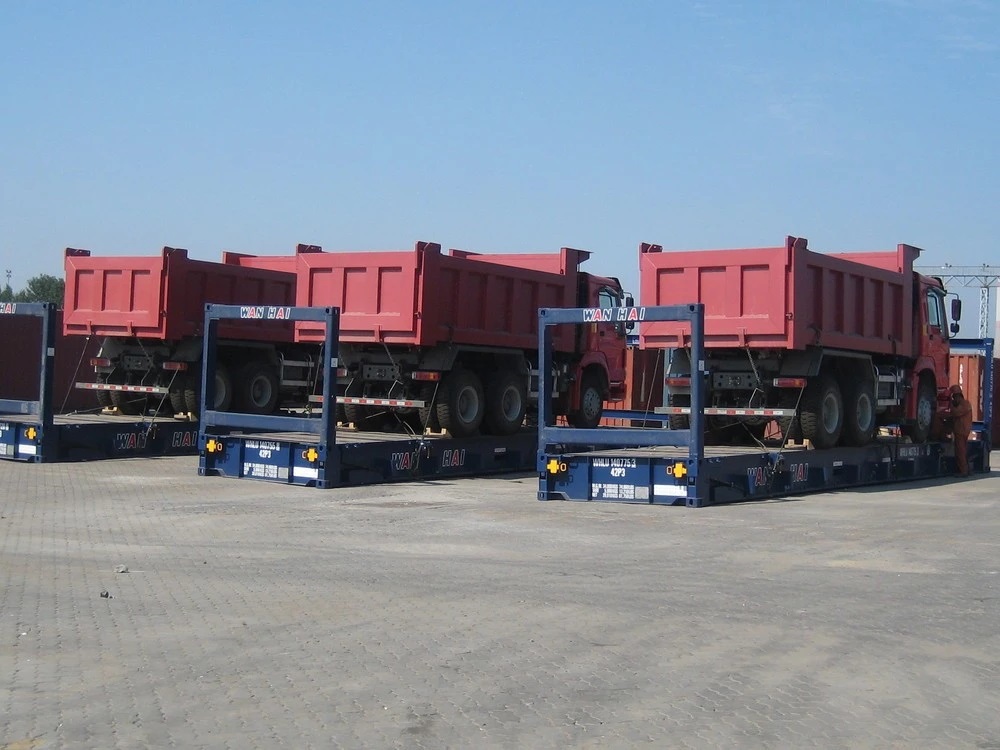

1. Flatrack container
2. By bulk ship

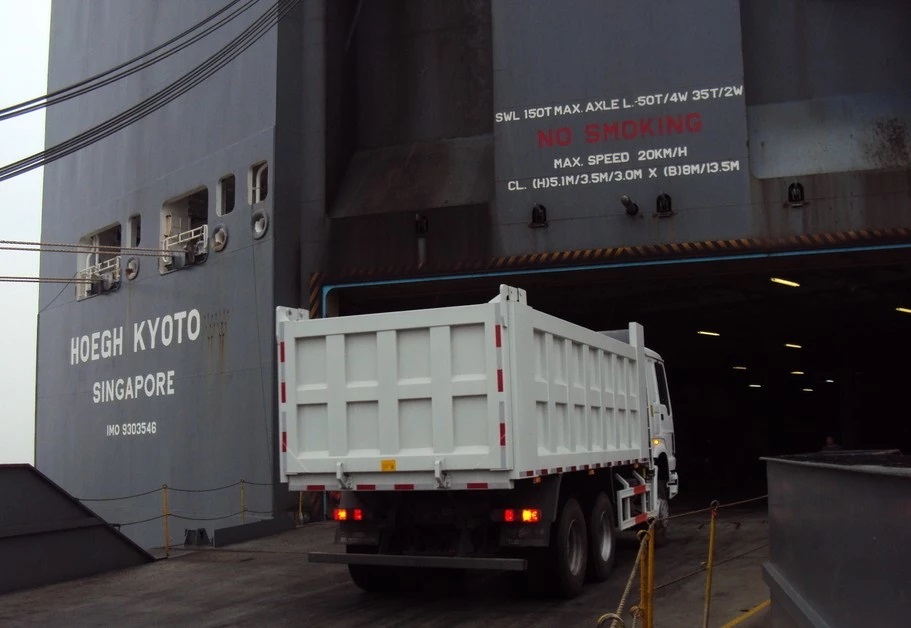

3. By RO-Ro ship : Pirce is high but protect the trailer very well
Product Tags:
|
|
HOWO 4X2 Drive 336 hp 10 wheels euro 2 standard dump truck for morden transport Images
|
