Sinotruk HOWO 50T Mining Dump Truck 371HP Euro Two Standard Front Lifting System

Product Categories
Shandong Global Heavy Truck Import&Export Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Sinotruk HOWO 50T Mining Dump Truck 371HP Euro Two Standard Front Lifting System

Brand Name : HOWO

Model Number : ZZ5507S3840AJ

Certification : ISO9001

Place of Origin : Shandong，China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 500sets per month

Delivery Time : 30-45days

Packaging Details : packed in nude

Drive Wheel : 6X4

Capacity(load) : 50T

Engine : WD615.47

Horsepower : 371hp

Transission Type : Manual

Emission Standard : Euro 2

Keywords : Mining Dump Truck

Fuel Type : Diesel

Contact Now

Sinotruk HOWO 50T 6X4 Mining Dump Truck 371HP Euro Two Standard​


Product Details

Truck Model ZZ5507S3840AJ
Truck Brand SINOTRUK—HOWO
Driving Type Left Hand Driving
Dimension(Lx W x H)(unloaded)(mm) 8700x3000x3900
Cargo body size (L*W*H, mm) (mm) 5800*2800*1700
Cargo body Thickness(mm) bottom:12mm, side:10mm,
Cargo material Manganese plate
Lifting System Front lifting
HYVA brand
Approaching angle/Departure angle(°) 32/40
Overhang(front/rear) (mm) 1500/1560
Wheel base (mm) 3800+1500
Max speed(km/h 50
Min. ground Clearance (mm) 340
Max. gardeability (%) 42
Min. turning Radius (e) 22
Curb weight(kg) 21000
Loading Weight(kg) 50000
Engine Model WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection
Brand SINOTRUK
Fuel type Diesel
Horse Power 371HP
Emission EURO II
Fuel tanker capacity (L) 500
Clutch Single-plate dry clutch Φ430mm
Transmission Model HW21712 (12 forward & 2 reverse)
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxlary brake engine exhaust valve brake
Steering system Model ZF, hydraulic steering with power assistance
Front axle HF10 , Steering with double T-cross section beam
Rear axle AC16, (cast steel 2×16ton hub-reduction axle)
Color Optional
Tire 13.00-25
10PCS with one spare tire
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500w
Starter 7.5Kw/24V
Cab HW7D cab, (with air-condition), Left hand drive


Our Service:

Article 1: Quality
1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.
1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.

Article 2 :Quality/Specifications/Quantity discrepancy
If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.

Article 3: Warranty and After-sales service
We and all of our distributors have enough ability to provide carefulness and consideration Warranty and After-sales service.

Packing:

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.

Factory Show:

SINOTRUK produced China's first heavy-duty truck- Huanghe JN150 8t truck in 1960, and introduced a heavy-duty truck project from Steyr in 1983. After rapid development of many years, SINOTRUK has initially built an international platform through the red-chip listing in Hong Kong in 2007, forged a strategic partnership with MAN which holding a 25%+1 stake in SINOTRUK (Hong Kong) Limited in 2009, and introduced a series of technologies from the outside soon afterwards.
Nowadays, with overwhelming superiorities in technology and market, SINOTRUK has become China's largest heavy truck manufacturing base that has made a remarkable contribution to the development of China's heavy-duty truck industry and economic construction.

Reference pictures:

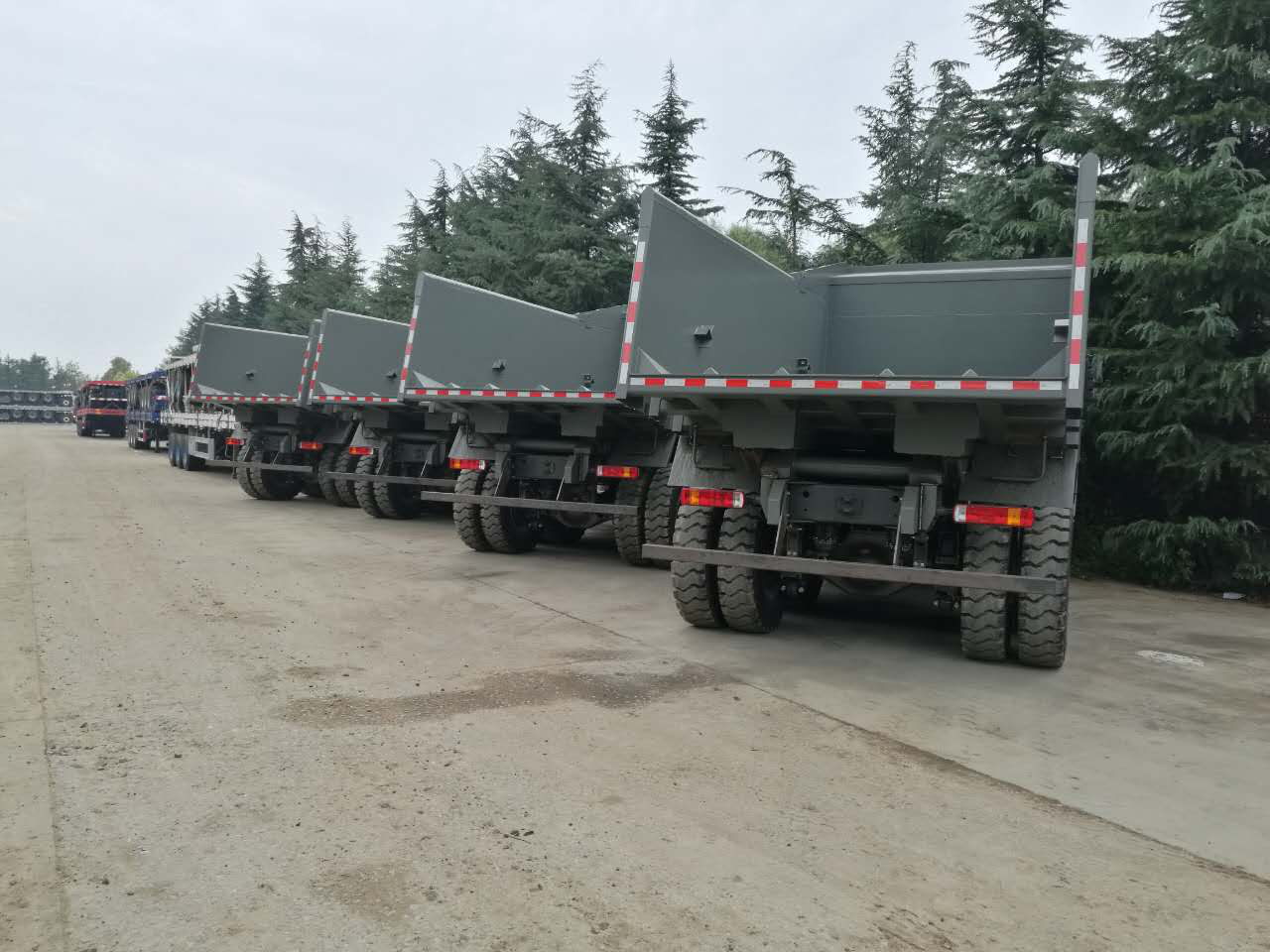

Sinotruk HOWO 50T Mining Dump Truck 371HP Euro Two Standard Front Lifting System

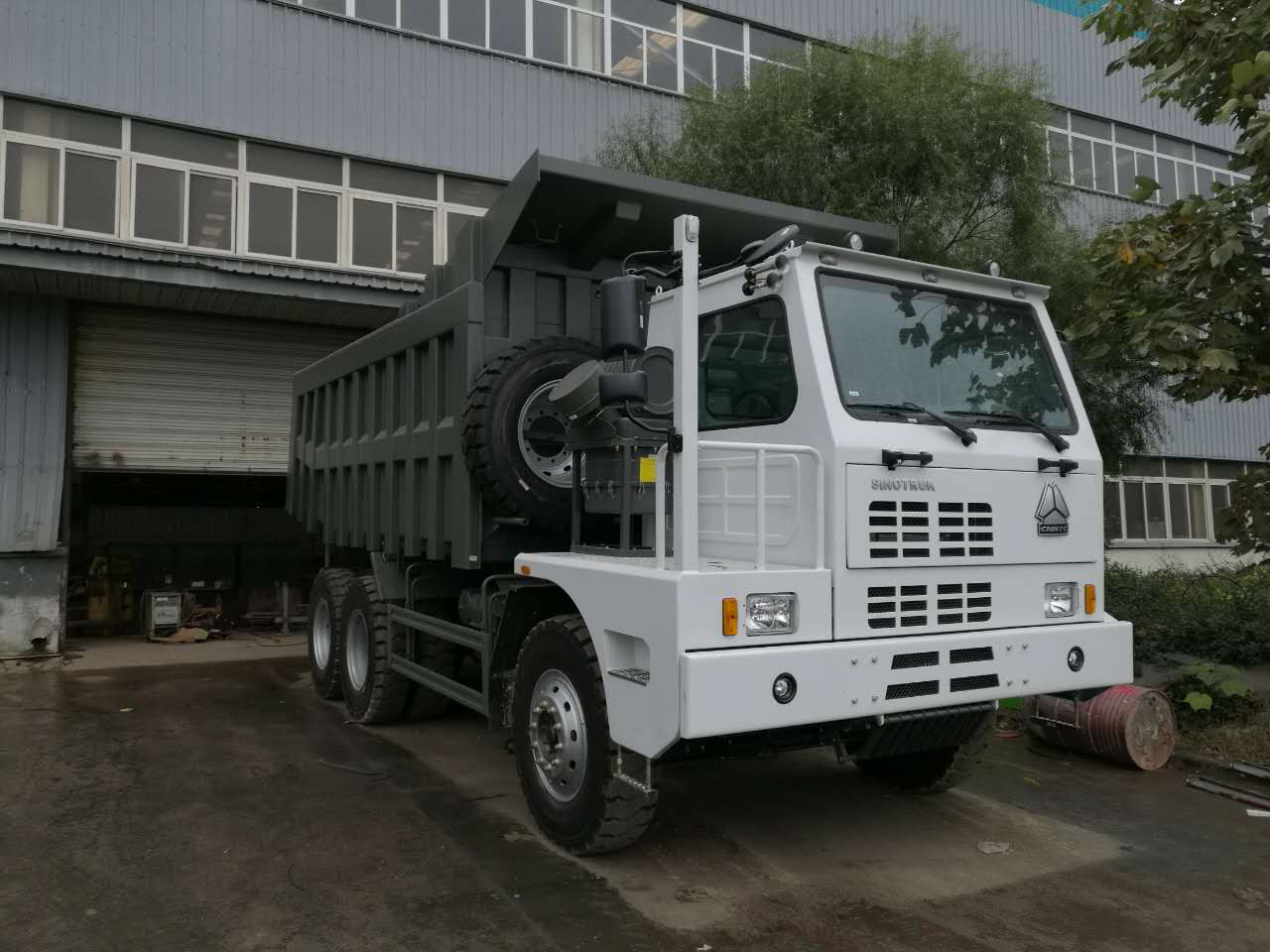

Sinotruk HOWO 50T Mining Dump Truck 371HP Euro Two Standard Front Lifting System

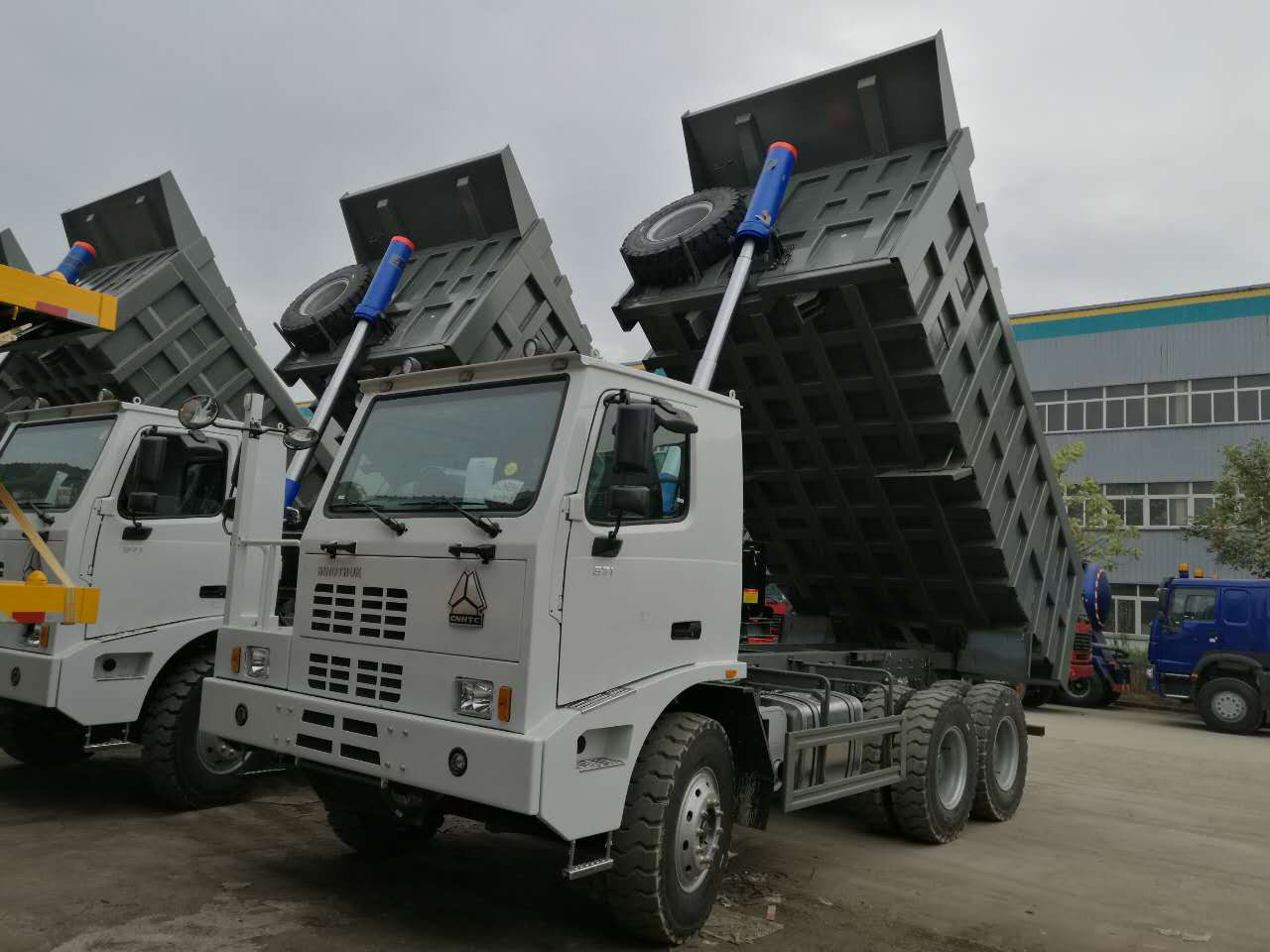

Sinotruk HOWO 50T Mining Dump Truck 371HP Euro Two Standard Front Lifting System
