4x4 5tons Euro 2 Underground Mining Dump Truck With Yunnei 490 Engine And Exhaust Purifier
Description:
Cab can be specially adjusted: our group can analyze your special provisions for your special specialization of different cab, suitable for your walking environment and ensure the safety of the driver rest assured.
Can be widely used in the environment: my group sibuxiang car is widely used in mining, mine, mine, mountain climbing, rural roads and other environments.
Diesel engine: drive robust, adopt special material selection, small size, light weight, small vibration. Analyzing the difference of power and performance, we can choose single cylinder internal combustion engine, double cylinder engine and 4112 diesel engine.
Filter function: if you order the four not like the car is located in the mine metal mine work, but also can help you to assemble tail gas water processor, guard the air flow quality of walking environment.
Gearbox: our group adopts special order, wanliyang, Faust and other high quality brand gearbox, the shift is as natural as the car.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Product Features:
1. 24Hours after-sales service by email or phone.
2. 100% Response rate.
3. Our customer-oriented sales and technical team are always at your service
4. OEM Service available
5. Warranty: 12 months warranty , beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
Specification:
| Product Model: | LN1665T |
| Type of fuel: | Diesel |
| Driver's seat position: | Side driving |
| Engine: | Yunnei 490 |
| Engine power: | 48KW(65 horsepower.) |
| Type of gearbox: | 530(Twelve stalls.) |
| Drive Mode: | Rear wheel drive |
| Brake mode: | Breathing Brake |
| Unloading: | Rear unloading |
| Front tire size: | 700-16 Mine tyres |
| Size of rear Tyre: | 700-16 Double tire. |
| Vehicle size: | 4600*1630*1550(mm) |
| Size of the loading box: | 2850*1600*500(mm) |
| Loading box configuration: | Thick steel plate at bottom, T = 8mm |
| Steering wheel power type: | Hydraulic power steering |
| Plate spring: | 13 pieces * 70 mm wide * 12 mm thick |
| Boxes volume: | 2.3 cubic meters |
| Climbing ability: | 12 degrees. |
| Car load: | 5t |
| Treatment of tail gas: | Exhaust purifier |
| Chassis: | height:120mm width:60mm Plate thickness:8mm |
| Distance to ground height: | 200mm |

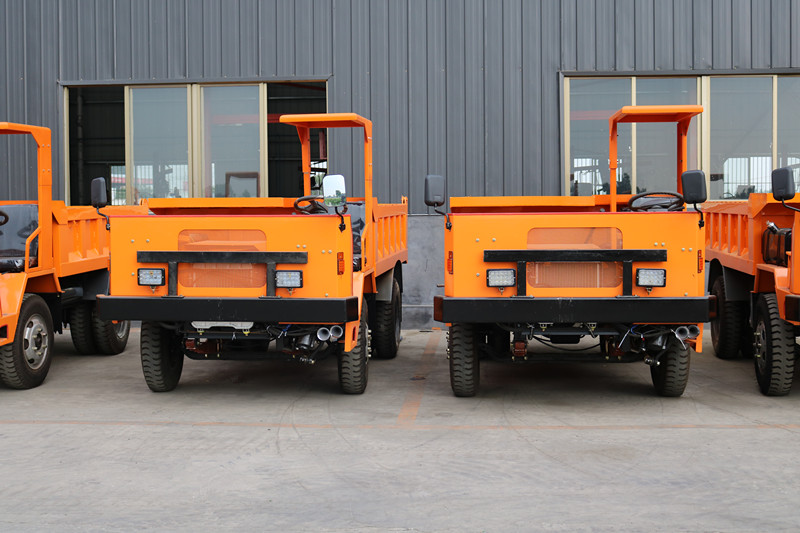

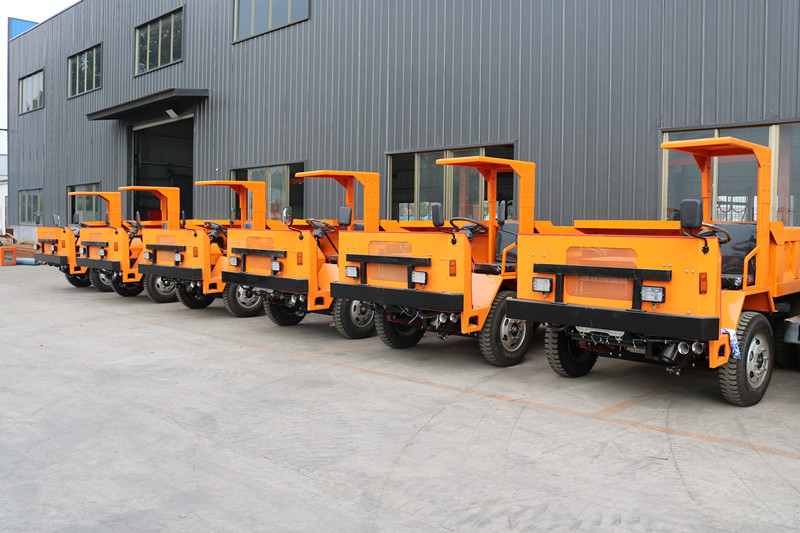

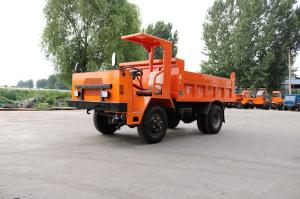

Reference pictures:
