Small Self - Loading Concrete Mixer Truck JIEFANG FAW J5M 42 64

Brand Name : FAW

Model Number : CA5160GJBEA80/ CA5250GJBA80

Certification : ISO/CCC

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 500 pieces/month

Delivery Time : 30-45 work days

Packaging Details : Nude

Wheel Base : 4210, 3500+1350 mm

Economic Speed : 60-70, 50-60 km/h

Maximum Speed : 92, 84 km/h

Emission : Euro 2

Product name : Mixer Truck

Max. Gradeability(%) : 45/ 55

Engine Rated Power(kw/rpm) : 155/2300, 209/2300

Condition : New

Contact Now

JIEFANG FAW J5M 4*2 6*4 Small Self-loading Concrete Mixer Truck

Product description

		J5M Mixer Truck 4*2	J5M Mixer Truck 6*4
		3	9
Recommended Vehicle Model		CA5160GJBEA80	CA5250GJBA80
Mass Parameter(kg)	Chassis net weight kg	5850	8760
Mass Parameter(kg)	MAX gross kg	19500	31500
Dimension Parameter(mm)	Overall Dimension	809024902760	752524902760
Dimension Parameter(mm)	wheel base mm	4210	3500+1350
Performance Parameter	Max. Speed(km/h)	92	84
	Economic Speed(km/h)	60-70	50-60
	Max. Gradeability(%)	45	55
Cabin		J5M flat top& semi-floating cabin& right	J5M flat top& semi-floating cabin& right
Engine	Model	WP6.210E32	CA6DL1-28
	Rated Power(kw/rpm)	155/2300	209/2300
	Max. Torque(Nm/rpm)	800/1400-1600	1100/1300-1700
Transmission	Model	CA7TB100M	CA9TB160M
Transmission	Gears	Manual Transmission, 7 forward gears, 1 reverse gears	Manual Transmission, 9 forward gears, 1 reverse gears
Axles	Steering Axle	maximum load 6500kg	maximum load 6500kg
Axles	Drive Axle	457 single reduction, reduction ratio 5.286 , maximum load13000kg	457 single reduction, reduction ratio 5.833, maximum load13000kg
Body		Suitable for 6 square	Suitable for 8 square
Body		mixer body	mixer body
tyre		11.00R2016	10.00R2016
Emission Level		E2	E2
Certifications
Remarks
Exported countries		Pakistan	Kenya

Recommend Market Type	Cargo Type	concrete	concrete
	Main Working Condition	Round trip full load	Round trip full load
	Operating Condition	short distance	short distance
	Driver Position	right	right
	Customer Type	Middle end, prefer quality and price	Middle end, prefer quality and price

Company information

Specialized in trucks industry for more than 20 years, we know what trucks are for, and what the customers really need. We recommend the specification suitable for the specified usage.
Our trucks and trailers are exported to more than 100 countries and areas, such as Africa, South East Asia, North Asia, Middle East, South America.
One-stop service for all the trucks and trailers from China, where the customers can have all the products they need to save time, energy and cost.
Trucks:Tractor Truck, Dump Truck, Concrete Mixer Truck, CNG Truck, Cargo Truck, Tank Truck, Garbage Truck, All-Wheel Drive Truck, Special Vehicles, Bus.Trailers: Flat bed, Low bed, VAN, Warehouse, Tanker, Car carrier, Logging, Tipper, etc

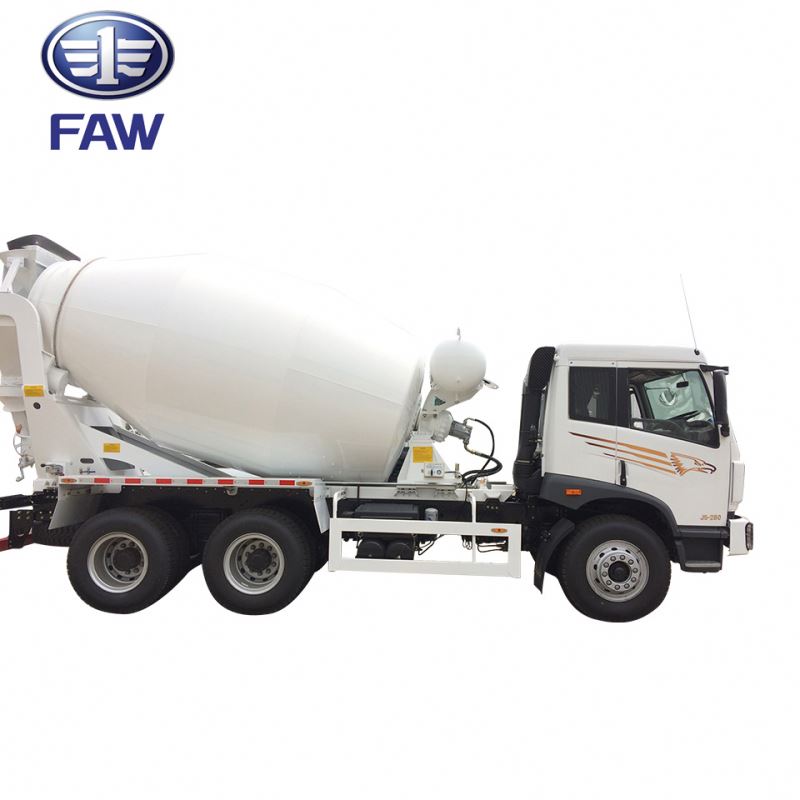

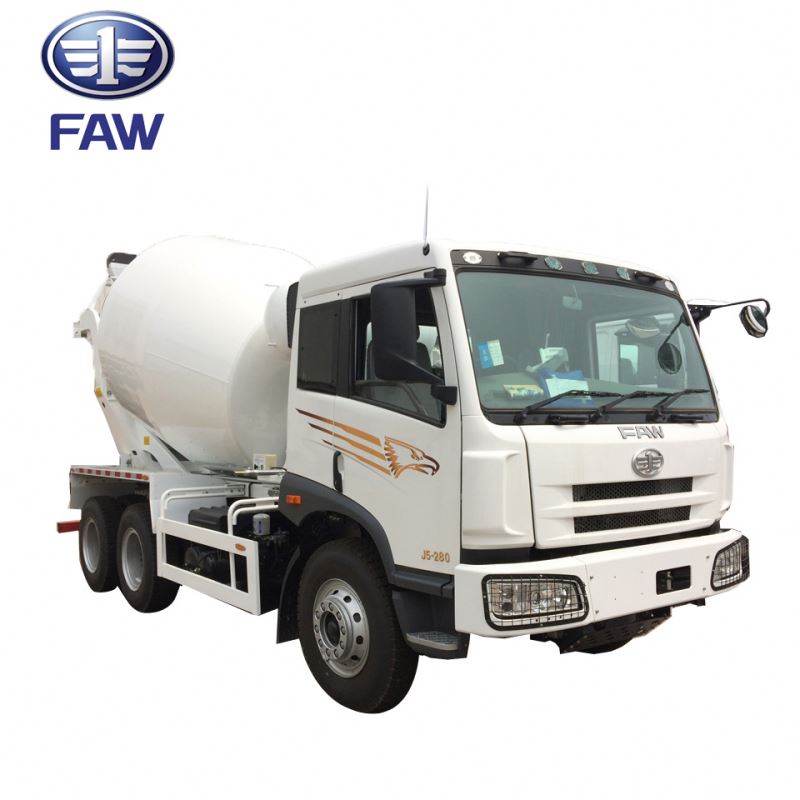

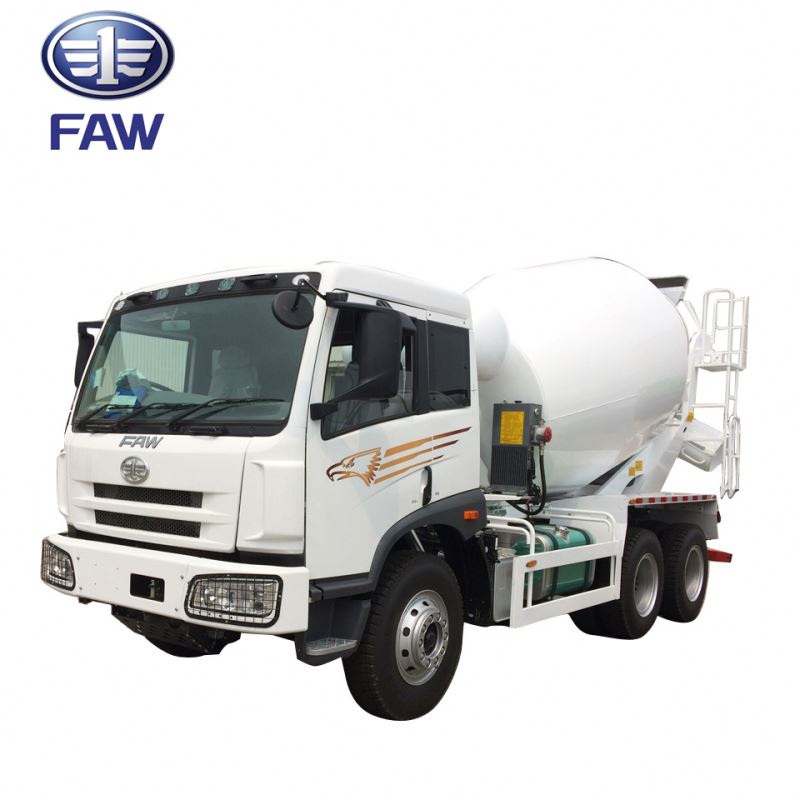

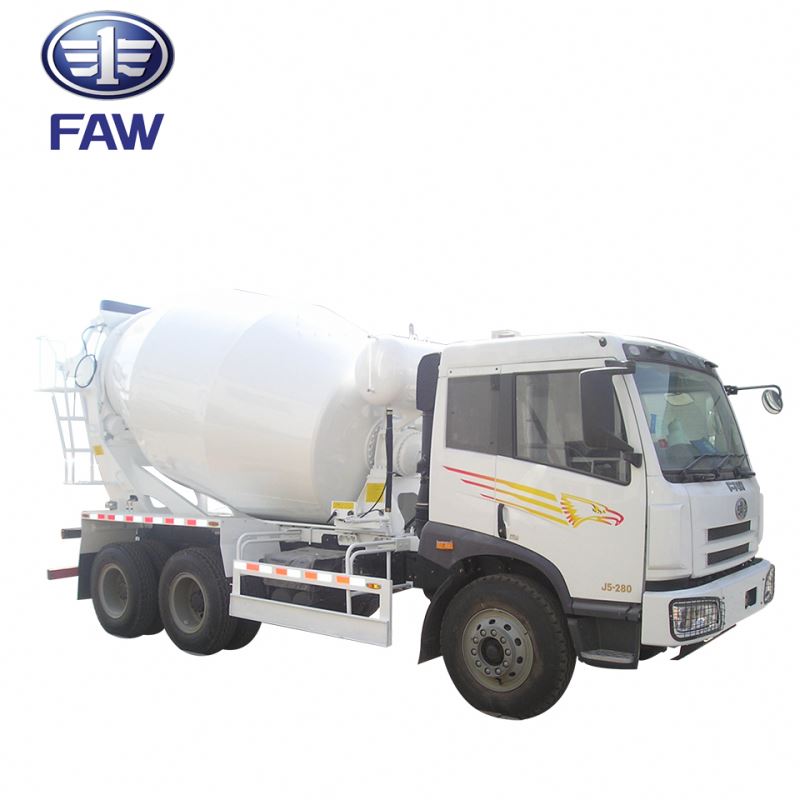

Product picture
