19-22m Platform Type Bridge Inspection Detection Truck / Concrete Pumping Equipment

Name: 1922m Platform Type Bridge Inspection Detection Truck Concrete Pumping Equipment
Brand: HOWO,
Price: 1 USD

Quality 19-22m Platform Type Bridge Inspection Detection Truck / Concrete Pumping Equipment wholesale

Brand Name : HOWO,

Model Number : ZZ

Certification : CC

Place of Origin : China

MOQ : 1 unit

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 500 units per month

Delivery Time : 30-45 work days

Packaging Details : Nude

Condition : New

Max. self-propelled speed : 15m/min

G.V.W : 31000KG

The second scope of rotation : 0-180

Max. horizontal range : 22M

Overall dimension : 12565(L)x2500(Wx4000 (H)mm

Contact Now

NEW HOWO 19-22m Platform type bridge inspection detection truck With Optional Color

Specification:

Max. horizontal range	22M
Max. lowering depth	8500mm
Width of platform	1000mm
Space required on bridge	3000mm
Max. load on platform	700KG
Max. load on telescopic platform	300KG
Max. Over-bridging of sidewalk	3500mm
Max. crossing of sound barrier	4500mm
The first scope of rotation	0-90°
The second scope of rotation	0-180⁰
Max. self-propelled speed	15m/min
G.V.W	31000KG
control system	Wireless remote control, Panel control, emergency manual control

Features:

We HSA, design and manufacture all series bridge inspection truck from 12m to 22m

Our platform type bridge inspection truck are widely used in all kinds of under-bridge project: Such as inspections, repairs, stripping operations, painting and sandblasting, general maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.

Quality Control:

A quality control team with more than 20 years' experience has been set up in Hangzhou Special Automobile. All the members in this team have more than 20 years' experience in the quality control of special purpose vehicle. Each step in the manufacturing process has been strictly monitored to guarantee the products' high quality. No matter what are your interested items, they will be in the same outstanding quality.

Reliable Performance:

·Good capabilities of high-spanning and wide-spanning, suitable for different operating conditions.
Self-propelled ability during operation, max. moving speed 15m/min.
Deploying time is only 5 minutes.

More Safety Design:

Key Parts with Europe brand (Such as control system, Hydralic system, Electric system)
Standby gasline generator make sure the woker safety during hydraulic fault.
Four inboard hydraulic stabilizers to ensure the truck stable during work
adopt mechanical, hydraulic and electrical triple limit, with the function of interlocking

180° work platform rotation
400kg/800kg work platform capacity
Two drive systems:
Main Hydraulic system: Truck engine P.T.O.
Back-up system: 10kw gasoline generator
Four inboard hydraulic stabilizers
Wireless remote, panels and emergency three operating mode.
Multi-party video communication system.
Self-propelled hydro-static drive
Self-erecting in single lane in 5 minutes

Product Tags:

aircraft refueler trucks

truck mounted concrete pump

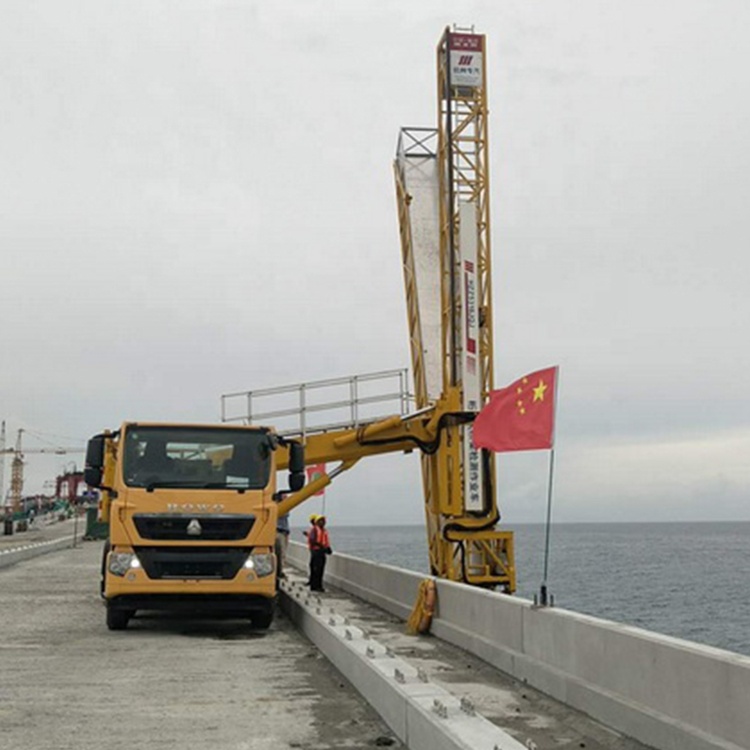

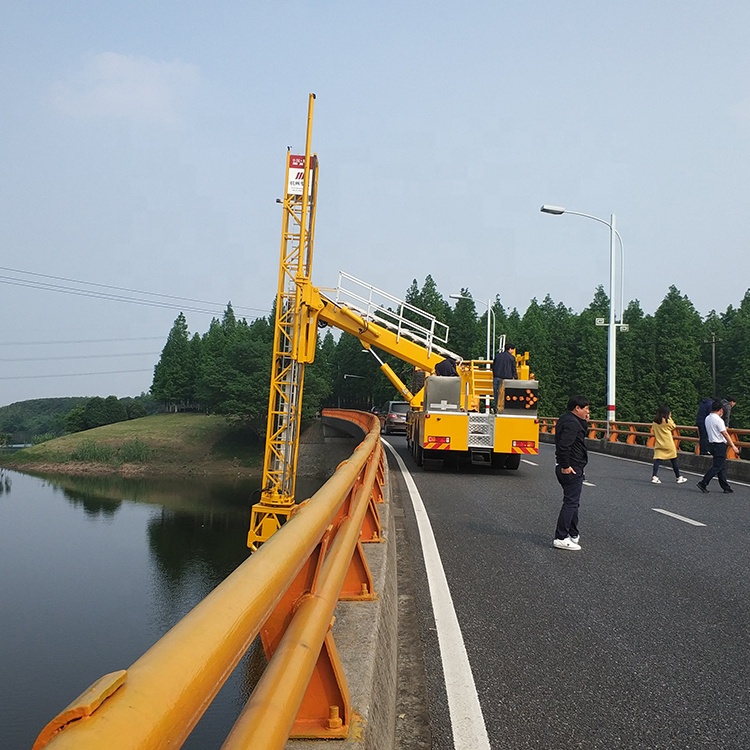

19-22m Platform Type Bridge Inspection Detection Truck / Concrete Pumping Equipment Images
