High Quality Container Semi Tractor Low Bed 4 Axle Heavy Duty Lowboy Truck Trailer
Product description
Lowbed semi trailer is mainly used for transport of goods not spin, such as: tractors, loaders, excavators, bulldozers, etc., applied to many industries, for large cargo transportation is very convenient.With loading 30-200tons low bed semi trailer,can be provided based on client requirements.
More charactors of strong low bed trailer you will concern
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The welding machines and most skilled workers make welding of low bed trailer more frequent and strong.
3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.
4>We have standard low bed semi trailer which is with 3 axles and 60 tons loading capacity. Meanwhile, we can have your trailer customised with options.
Parameter Table
| Product Name | Container transport semi-trailer |
| Material | Carbon steel |
| Size | 12.4*2.5*1.55M |
| Main Beam | 400mm-550mm |
| Axle Brand | 13Ton Axle FUWA Brand(BPW/HJ/JINSHENG Axle) |
| Departure Angle | 16 |
| Suspension | Steel Leaf Spring Suspension/Air Suspension/Mechanical Suspension |
| Landing Gear | 28Ton Jost/FUWA Dual-Speed landing gear |
| Tire Size | 1100R22.5 12R22.5 |
| Tire Brand | Triangle/Chengshan/Linglong/DoubleCoin |
| Leaf Spring | 90(W)mm*13(Thick)mm*10 Layer 10/10/10 leaf spring suspension |
| The Material Of Main Beam | Q345B carbon steel,the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm. |
| Side Beam Q235 | 16# channel steel |
| Platform Plate | 3mm Diamond plate |
| Twist Lock | 12 Units |
| Traction Pin | 2” or 3.5” |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Function | Transport 20ft 40ft Container |
| Brake System | RE6 relay valve ;T30/30 spring brake chamber; 40L air tanks Dual Line braking system |
| Brake Air Chamber | Six double chamber |
| Electrical System | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core standard Cable. |
| Painting | anti-corrosive and final paint |
| Packing | Complete Chassis sand blasting to clean rust, 1 coat of antirust prime, 2 coats of final paint |
Product Advantages
1. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.
2. Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
3. Anti-slip strip on tail and rear of platform to ensure loading safely.
4. Optional landing gear under tail to ensure trailer to be stable when loading.
5. H-beam for side beam instead of channel steel.

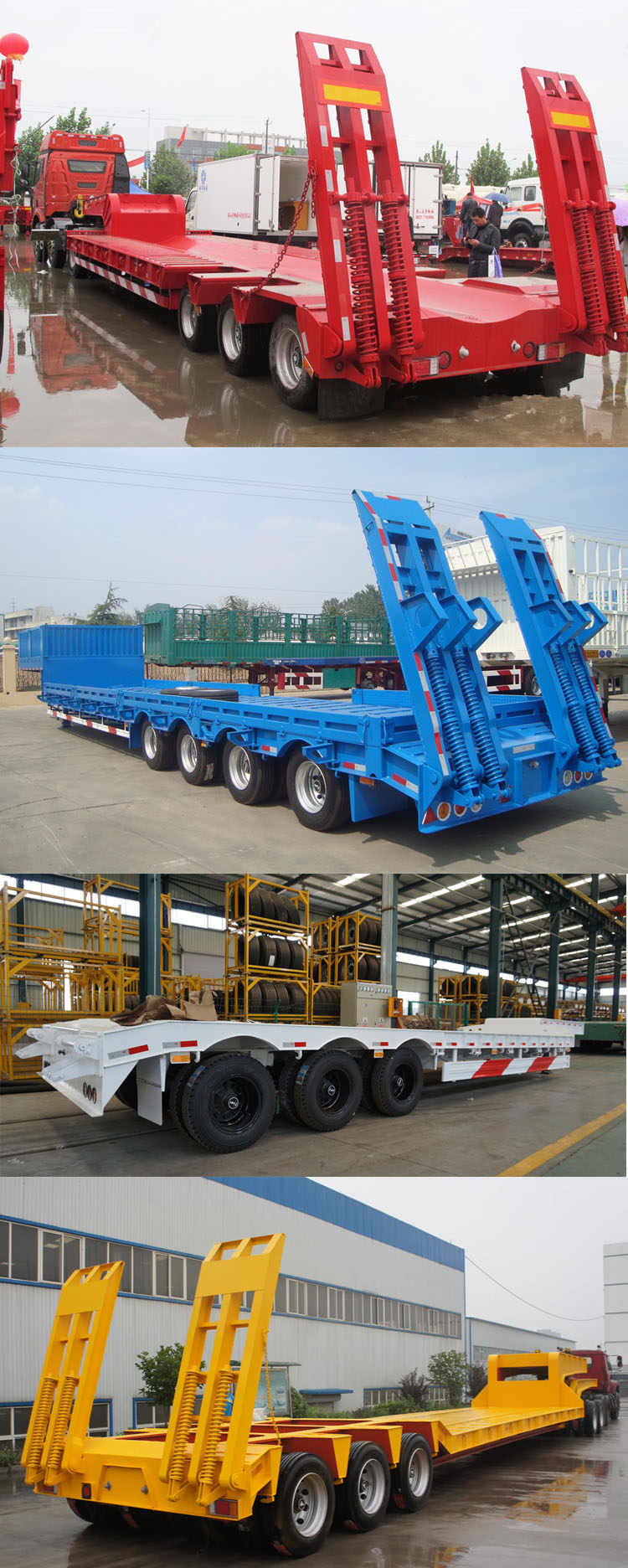

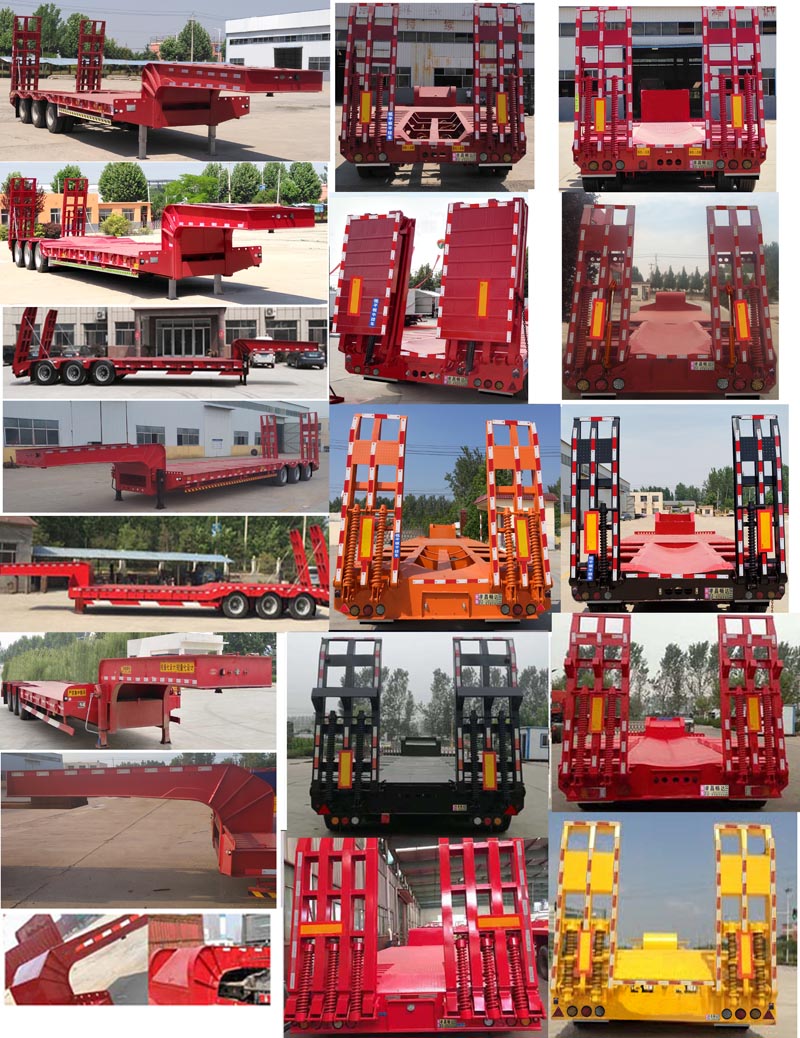

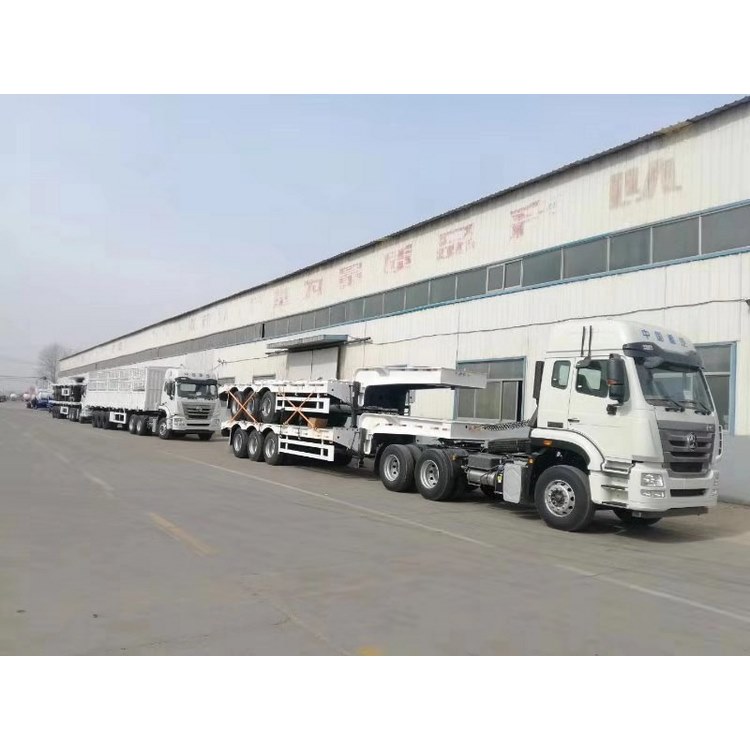

Product picture
Product Tags:
|
|
Low Bed 4 Axle Heavy Duty Lowboy Truck Trailer / Container Diesel Semi Tractor Images
|
