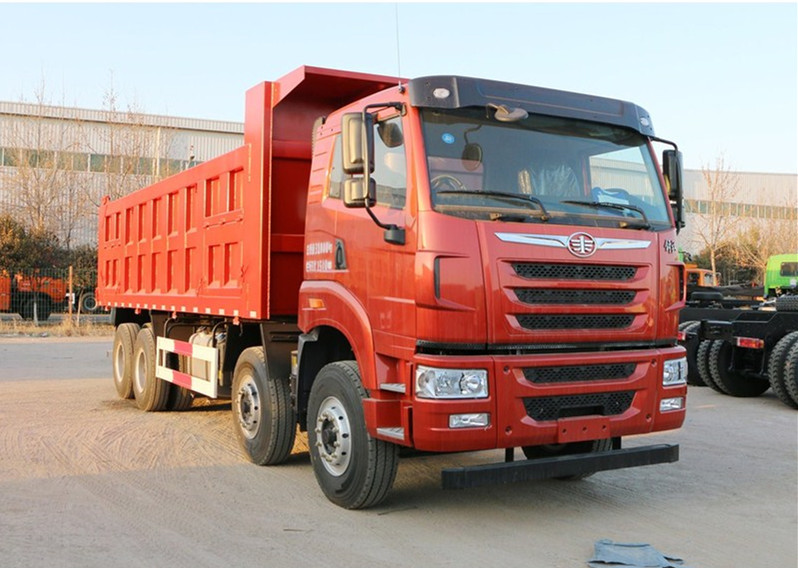

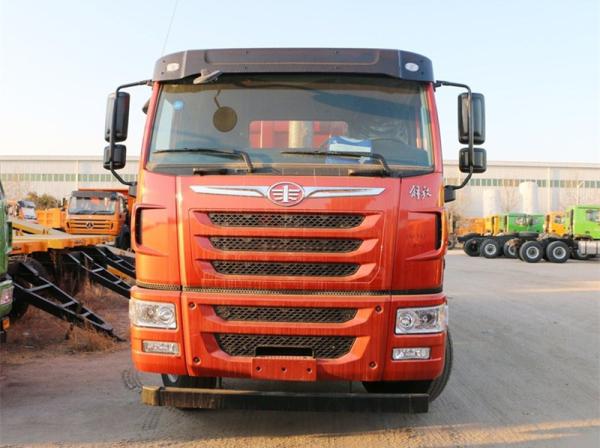

FAW 8x4 40tons Heavy Duty Dump Truck With Han V Cabin And Power Steering
Description:
| GVW31000kg Driving Type 8x4 |
| Model | CA3310 |
| Cab | Han V cab |
| Engine(Hp) | 270 |
| Power(Kw) | 199 |
| Wheelbase | 1900+3800+1350 |
| Front/Rear Suspension | 1964/1847 |
| Steering | Power steering |
| Approach/departure angle | 21/42 |
| Wheels & tire | 11.00R20 |
| Tire number | 12+1 |
| Body Dimensions(mm) | 7600×2300×1500 |
| Cubage (m3) | 26/30 |
| Steel thickness | Side 6 ,Bottom 8 |
| RHD or LHD | optional |
| Overall Dimensions(mm) | 10460×2500×3250 |
| Curb weight (Kg) | 15450 |
| Engine | Model | WP10.270 |
| Horsepower | 270 |
| Maximum output Kw | 199 |
| Maximum torque N.m | |
| Type | 6cylinders, in-line,4-stroke, turbo inter-cooling, diesel engine |
| Displacement | 9.726L |
| Weichai brand |
| Driving passenger | 2,3 |
| Transmission | 10 forwards,2 reverse |
| Front Axle | 7.5T |
| Rear Axle | 13Tx2 |
| Brake System | air brake exhaust brake |
| Color and LOGO | customized |
| Electric system | 24V |
| Standard configuration | The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 6mm, bottom 8mm. |
| Delivery date | Within 20 days after receipt advance |
| Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. |
CA3310 FAW 8x4 40tons Heavy Duty Dump Truck Advantages:
Cabin: artistic, modest, streamlined design;
Interior: ergonomics, clean, convenient
Flat floor design: big cabin space and easy moving
High strength frame: high payload capacity Reliable engine, gearbox and axle
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. Warranty: one year or 10000 km
2. Production time: within 35 working days
3. After-sale service team:highly trained with overseas working experience
4. The engine adopt 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.
5. Adopting full hydraulic transmission, it can bring the power of engine into full play amply.
Reference pictures:
