3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type

Name: 3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type
Brand: SINOTRUK
Price: 1 USD

Quality 3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type wholesale

Brand Name : SINOTRUK

Model Number : ZZ3257N3647A

Certification : ISO/CCC

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 500 pieces per month

Delivery Time : 30-45 work days

Packaging Details : Nude

Drive Wheel : 6x4

Horsepower : 251 - 350hp

Transmission Type : Manual

Fuel Type : Diesel

Capacity (Load) : 21 - 30t

Emission Standard : Euro 2

Tire : 12.00R20

Contact Now

Heavy Duty SINOTRUK 3 Axle HOWO 30 Ton Heavy Dump Truck In Africa Euro 2

Product Description

Sinotruck Dump Truck Product Advantages:

1.Popular dump truck both in domestic country and abroad.

2.10 Years export operation experience

3.Reasonable Price

4.Quick Delivery

5.Low oil consumption and longer lifespan.

Howo Dump truck applications:

1.The engine power 266hp-371hp,suitable for all kinds of roads.

2.Left hand driving and right hand driving for different countries.

3.Heavy loading dump truck,loading ranges from 15 tons to 70 tons.

4.For different weather and different environment,different trucks we can supply.No matter in Russia,Africa,south Amercia,middle east,southest Asia,it performs very well.

Product Parameters

SINOTRUK HOWO 336HP 6x4 dump truck
Truck Model			ZZ3257N3847A
Steering type			LHD or RHD
Dimension of box (LxWxH)			5800x2300x1500 mm
Thickness of box (mm)			Deck:8mm;side:6mm
Lifting Type of carriage			Middle Lifting,T type
Overall dimensions (LxWxH)			860725603386 mm
Approach angle/Departure angle(°)			19/23
front/rear suspension (mm)			1500/1870
Wheelbase (mm)			3825+1350
Max speed(km/h)			75
Vehicle Curb weight(kg)			12460
Gross mass (kg)			25000
Engine	Model		SINOTRUK WD615.69, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and intercooling
	Power, max(kw/rpm)		336 HP
	Emission		Euro2
Transmission/Gear box		Model	HW19710, 10 speeds forward ,2 reverse
Brake system		Service brake	Dual circuit compressed air brake
		Parking brake	spring energy, compressed air operating on rear wheels
		Auxiliary brake	Engine exhaust brake
Steering system		Model	8118,hydraulic steering with power assistance
Front axle		HF 9,drum type
Driving axle		HC16,16ton double reduction
Tire		12.00R20,radial tyres,11pcs (one spare)
Clutch		φ430 diaphragm spring clutch,hydraulic control air power assisted
Cab		HW76,one bed,with A/C. VOLVO technology ,comfortable cab. 4-point support floating suspension and shock absorbers, up/down and front/back adjustable steering wheel, VDO instrument and control module,safety belt , air horn,outer sun visor.
Electric system		Battery		2x12V/165Ah
		Alternator		28V-1500 KW
		Starter		7.5 Kw/24 V
Color		red,white,yellow. Optional as per customer’s requests.

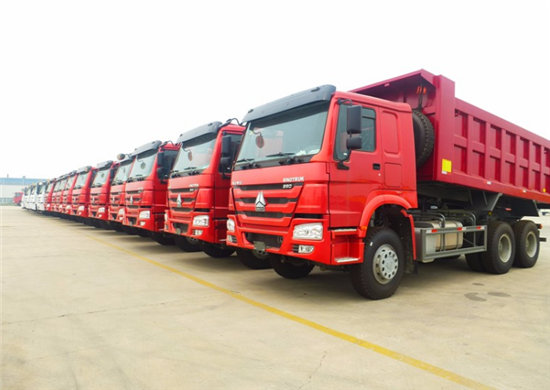

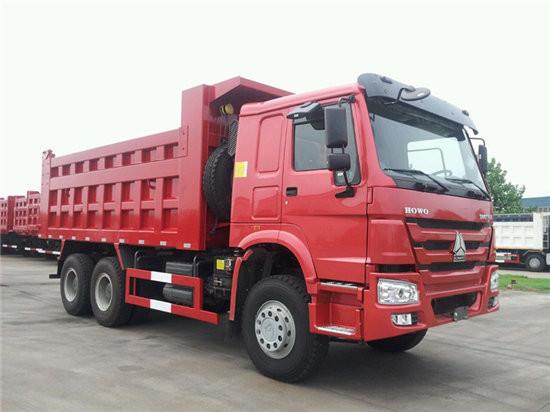

Product Picture
